(08-47) - HYDRAULICS - PILOT PRESSURE, RETURN LINES

Запчасти Case CX80 (08-47) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

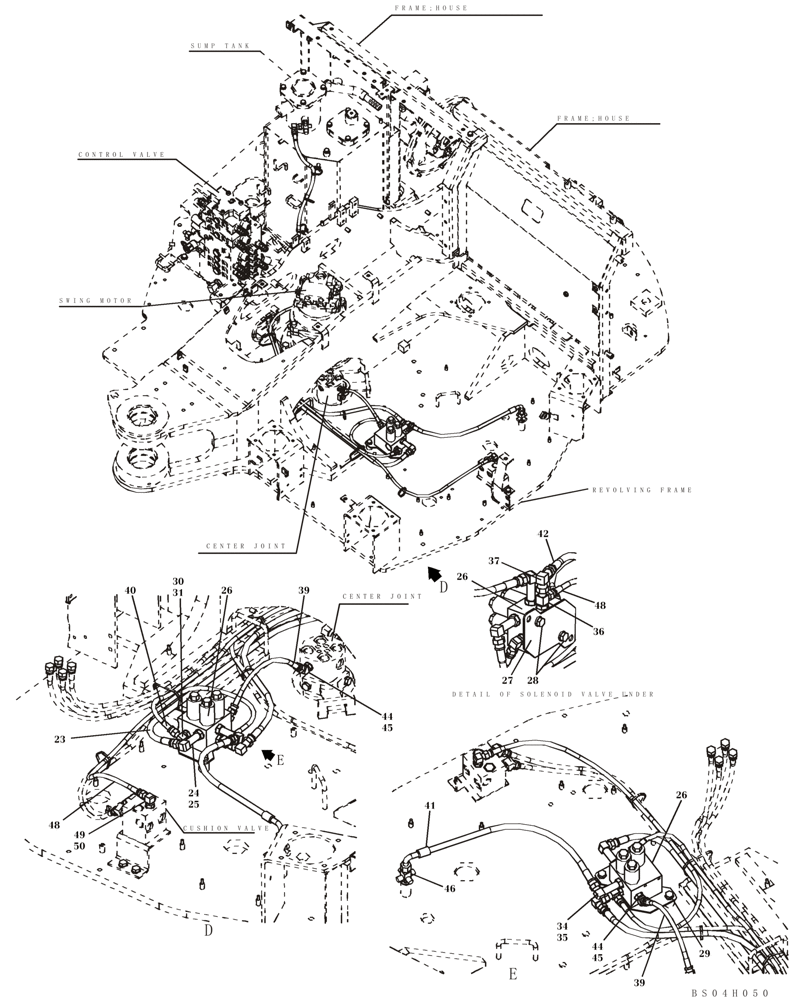

Схема запчастей Case CX80 - (08-47) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS
46
39
36
d
center joint
30
e
35
sump tank
45
49
40
50
48
45
revolving frame
cushion valve
swing motor
42
41
center joint
34
31
26
28
26
bs04h050
44
d
24
e
39
29
48
control valve
44
26
23
37
25
27
detail of solenoid valve under
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

23

KHJ2319

HOSE

See Figure 08-46

1шт.

24

KHJ1442

ELBOW

Incl. 25

1шт.

25

154475A1

O-RING

1шт.

26

KHJ15430

SOLENOID VALVE

See Figure 08-86

1шт.

27

KAJ5207

HOLDER

1шт.

28

166351A1

BOLT,Sems, M10 x 20mm

2шт.

29

166052A1

BOLT

2шт.

30

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 31

1шт.

31

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

KHJ1442

ELBOW

Incl. 35

1шт.

35

154475A1

O-RING

1шт.

36

163422A1

TEE

1шт.

37

153526A1

ELBOW

1шт.

39

KHJ2042

HOSE

See Figure 08-49

1шт.

40

KHJ2311

HOSE

See Figure 08-48

1шт.

41

KHJ2148

HOSE

See Figure 08-49

1шт.

42

KHJ2417

HOSE

See Figure 08-45

1шт.

44

150933A1

ELBOW

Incl. 45

2шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

KHJ1966

ADAPTER

1шт.

48

KHJ2052

HOSE

See Figure 08-49

1шт.

49

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 50

1шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
