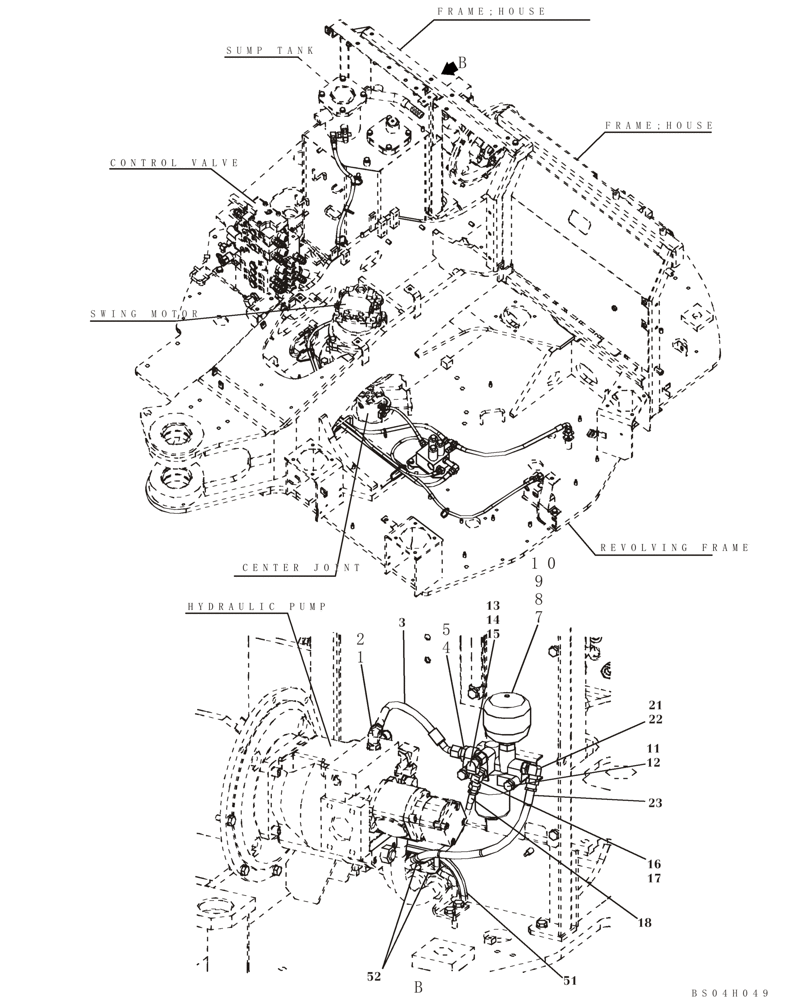

Запчасти Case CX80 (08-46) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 2

1шт.

2

154475A1

O-RING

1шт.

3

KHJ2447

HOSE

1шт.

4

161084A1

ADAPTER

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

KHJ2357

ACCUMULATOR

Incl. 7 - 10

1шт.

7

KHJ2359

ACCUMULATOR

Incl. 8

1шт.

8

154487A1

O-RING

1шт.

9

KHJ1474

FILTER ASSY

Incl. 10

1шт.

10

KHJ1493

HYDRAULIC OIL FILTER

1шт.

11

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

12

150409A1

WASHER

2шт.

13

KHJ2620

BUSHING

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

1541849C1

COUPLING

Incl. 15A, 15B

1шт.

15a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated

1шт.

15b

H434163

DUST CAP

Not Illustrated

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

KHJ2094

HOSE

See Figure 08-45

1шт.

21

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

KHJ2319

HOSE

See Figure 08-47

1шт.

51

KNJ2988

RUBBER SEAL

1шт.

52

150496A1

MOUNTING CLIP

2шт.
