(08-44) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD

Запчасти Case CX80 (08-44) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD (08) - HYDRAULICS

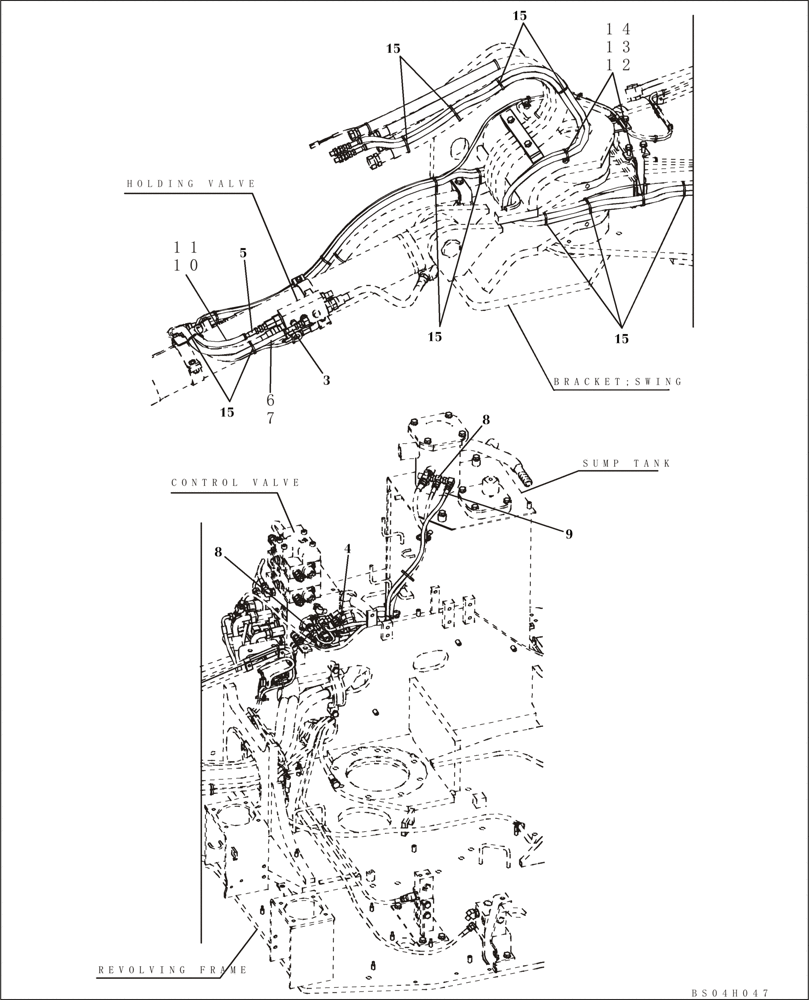

Схема запчастей Case CX80 - (08-44) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD (08) - HYDRAULICS
8
15
revolving frame
14
6
11
13
4
7
12
3
holding valve
9
sump tank
15
15
15
15
5
8
10
bs04h047
control valve
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

KHJ2837

HYDRAULIC HOSE,6.30 mm ID x 3500.00 mm

See Figure 08-43

1шт.

4

KHJ2837

HYDRAULIC HOSE,6.30 mm ID x 3500.00 mm

See Figure 08-43

1шт.

5

KAJ5146

HYDRAULIC HOSE,6.35 mm ID x 3200.00 mm

See Figure 08-43

1шт.

6

150408A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 2000 mm Length

1шт.

7

KAP0883

BAND

2шт.

8

KHJ2130

TEE

2шт.

9

KHJ1321

HYDRAULIC HOSE,6.35 mm ID x 3900.00 mm

See Figure 08-43

1шт.

10

150408A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 2000 mm Length

1шт.

11

KAP0883

BAND

2шт.

12

150860A1

COLLAR

2шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

14

150496A1

MOUNTING CLIP

2шт.

15

150496A1

MOUNTING CLIP

1шт.
