(08-41) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE

Запчасти Case CX80 (08-41) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

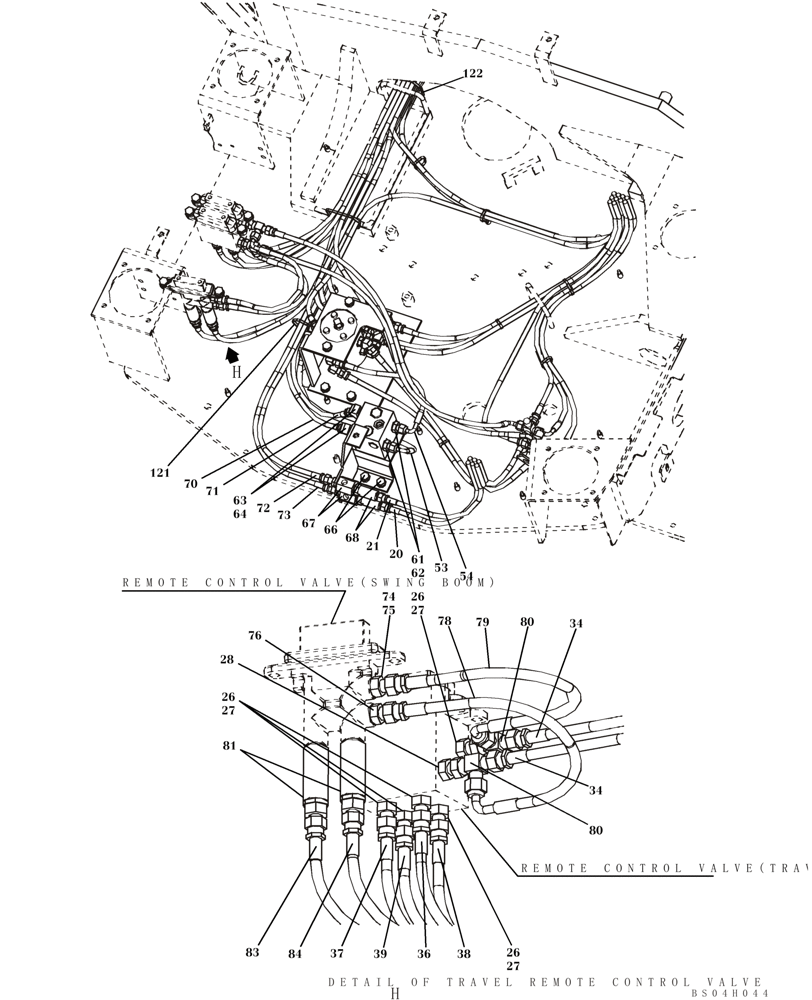

Схема запчастей Case CX80 - (08-41) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS
38
71
62
34
72
64
73
27
66
53
28
74
70
bs04h044
27
detail of travel remote control
26
20
67
61
remote control valve(swing boom)
21
h
75
68
80
34
37
79
26
121
76
h
54
26
27
81
36
78
39
122
83
80
63
84
remote control valve(travel)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

20

KHJ2053

HOSE

See Figure 08-38

1шт.

21

KHJ2053

HOSE

See Figure 08-38

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 27

5шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

161841A1

HYD CONNECTOR

1шт.

34

KHJ2088

HOSE

See Figure 08-39

2шт.

36

KHJ2255

HOSE

See Figure 08-40

1шт.

37

KHJ2057

HOSE

See Figure 08-40

1шт.

38

KHJ2067

HOSE

See Figure 08-40

1шт.

39

KHJ2057

HOSE

See Figure 08-40

1шт.

53

KHJ2239

HOSE,520.00 mm

1шт.

54

KHJ2238

HOSE

1шт.

61

153378A1

ADAPTER

Incl. 62

2шт.

62

154475A1

O-RING

1шт.

63

KHJ1445

ELBOW

Incl. 64

2шт.

64

154475A1

O-RING

1шт.

66

166052A1

BOLT

2шт.

67

KHJ0653

ADAPTER

2шт.

68

KHJ2314

VALVE, CUSHION

See Figure 08-88

2шт.

70

KHJ2077

HOSE

See Figure 08-40

1шт.

71

KHJ2162

HOSE

See Figure 08-40

1шт.

72

KHJ2064

HOSE

See Figure 08-40

1шт.

73

KHJ2074

HOSE

See Figure 08-40

1шт.

74

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 75

1шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

161841A1

HYD CONNECTOR

1шт.

78

KHJ2035

HOSE

1шт.

79

KHJ2035

HOSE

1шт.

80

KHJ2130

TEE

2шт.

81

KHJ2925

CONTROL VALVE

2шт.

83

KHJ2071

HOSE

See Figure 08-41

1шт.

84

KHJ2255

HOSE

See Figure 08-41

1шт.

121

150496A1

MOUNTING CLIP

1шт.

122

150498A1

MOUNTING CLIP

1шт.
