(08-39) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE

Запчасти Case CX80 (08-39) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

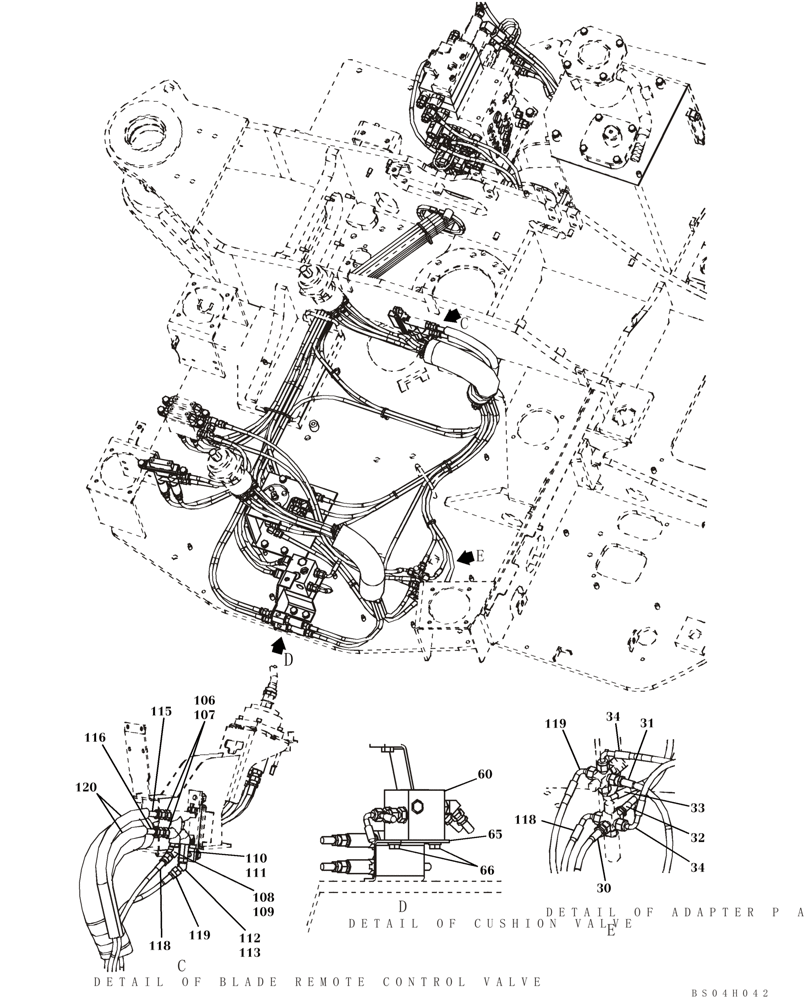

Схема запчастей Case CX80 - (08-39) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS
c
31
c
e
119
118
60
108
66
119
detail of cushion valve
65
d
112
106
111
detail of blade remote control v
116
113
34
detail of adapter p and t
32
bs04h042
110
e
109
34
d
33
118
120
30
115
107
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

30

KHJ2057

HOSE

See Figure 08-38

1шт.

31

KHJ2059

HOSE

See Figure 08-38

1шт.

32

KHJ2051

HOSE

See Figure 08-38

1шт.

33

KHJ2090

HOSE

See Figure 08-38

1шт.

34

KHJ2088

HOSE

See Figure 08-41

2шт.

60

KHJ2317

VALVE, CUSHION

See Figure 08-87

1шт.

65

KAJ4685

BRACKET

1шт.

66

166052A1

BOLT

2шт.

106

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 107

2шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

KHJ0994

ADAPTER

Incl. 109

1шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

162525A1

STUD

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

112

150933A1

ELBOW

Incl. 113

1шт.

113

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

KHJ2082

HOSE

See Figure 08-40

1шт.

116

KHJ2076

HOSE,6mm ID x 2750mm L

See Figure 08-40

1шт.

118

KHJ2090

HOSE

1шт.

119

KHJ2146

HOSE

1шт.

120

KHR4065

PLASTIC-RUBBER TUBE

2шт.
