(08-37) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD

Запчасти Case CX80 (08-37) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

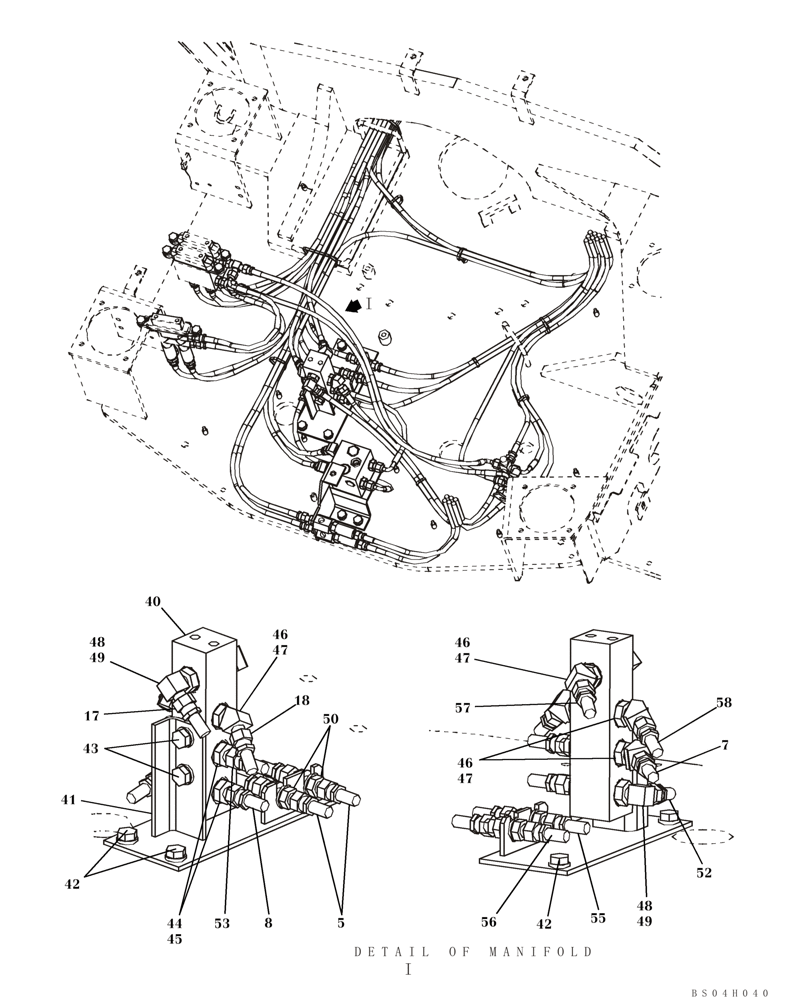

Схема запчастей Case CX80 - (08-37) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
i
57
detail of manifold
58
49
7
55
18
48
43
49
42
53
56
bs04h040
46
47
50
42
45
48
40
52
i
47
17
46
47
8
5
41
46
44
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

KHJ2058

HOSE

See Figure 08-33

2шт.

7

KHJ2064

HOSE

See Figure 08-33

1шт.

8

KHJ2059

HOSE

See Figure 08-33

1шт.

17

KHJ2311

HOSE

See Figure 08-33

1шт.

18

KHJ2310

HOSE

See Figure 08-33

1шт.

40

KHJ2437

MANIFOLD

1шт.

41

KAJ5013

BRACKET

1шт.

42

166052A1

BOLT

3шт.

43

166351A1

BOLT,Sems, M10 x 20mm

2шт.

44

153378A1

ADAPTER

Incl. 45

2шт.

45

154475A1

O-RING

1шт.

46

KHJ1445

ELBOW

Incl. 47

4шт.

47

154475A1

O-RING

1шт.

48

156554A1

ELBOW

Incl. 49

2шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

159481A1

ADAPTER

2шт.

52

KHJ2239

HOSE,520.00 mm

1шт.

53

KHJ2238

HOSE

1шт.

55

KHJ2057

HOSE

See Figure 08-35

1шт.

56

KHJ2066

HOSE

See Figure 08-35

1шт.

57

KHJ2066

HOSE

See Figure 08-35

1шт.

58

KHJ2064

HOSE

1шт.
