(08-36) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD

Запчасти Case CX80 (08-36) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

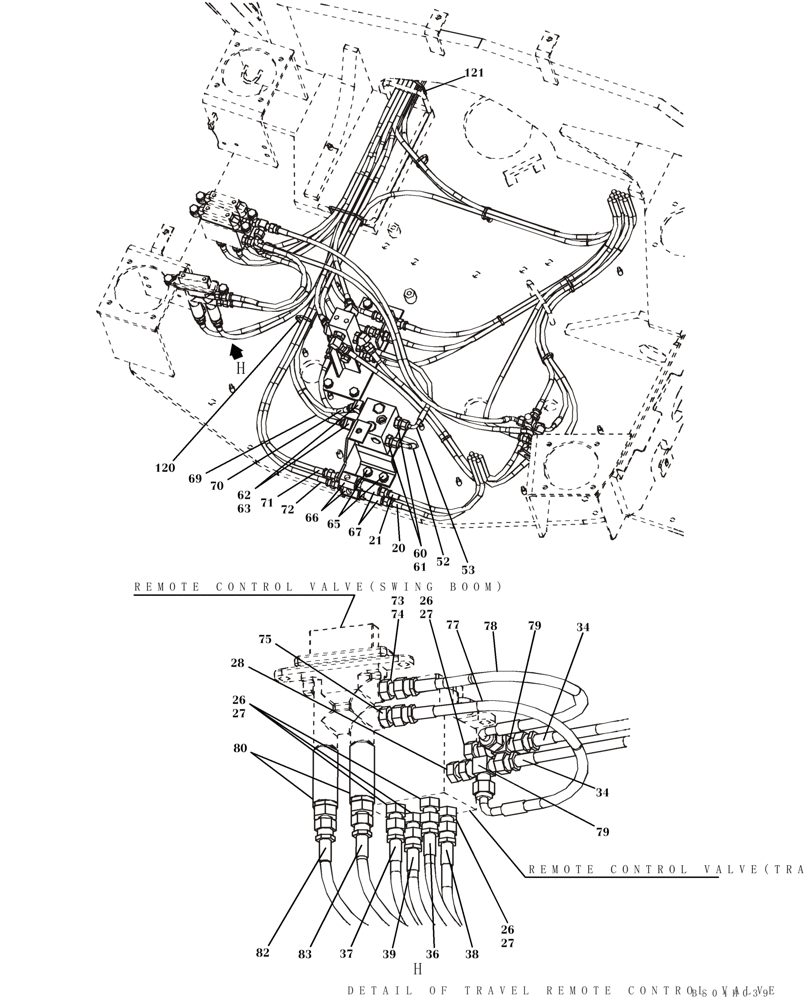

Схема запчастей Case CX80 - (08-36) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
70
79
20
75
h
detail of travel remote control
h
63
27
39
62
28
82
bs04h039
80
79
67
52
26
71
remote control valve(swing boom)
27
61
26
60
37
121
66
77
26
34
21
120
53
38
83
78
72
remote control valve(travel)
34
65
27
69
36
73
74
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

20

KHJ2053

HOSE

See Figure 08-33

1шт.

21

KHJ2053

HOSE

See Figure 08-33

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 27

5шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

161841A1

HYD CONNECTOR

1шт.

34

KHJ2088

HOSE

See Figure 08-34

2шт.

36

KHJ2255

HOSE

See Figure 08-35

1шт.

37

KHJ2057

HOSE

See Figure 08-35

1шт.

38

KHJ2067

HOSE

See Figure 08-35

1шт.

39

KHJ2057

HOSE

See Figure 08-35

1шт.

52

KHJ2239

HOSE,520.00 mm

1шт.

53

KHJ2238

HOSE

1шт.

60

153378A1

ADAPTER

Incl. 61

2шт.

61

154475A1

O-RING

1шт.

62

KHJ1445

ELBOW

Incl. 63

2шт.

63

154475A1

O-RING

1шт.

65

166052A1

BOLT

2шт.

66

KHJ0653

ADAPTER

2шт.

67

KHJ2314

VALVE, CUSHION

2шт.

69

KHJ2077

HOSE

See Figure 08-35

1шт.

70

KHJ2162

HOSE

See Figure 08-35

1шт.

71

KHJ2064

HOSE

See Figure 08-35

1шт.

72

KHJ2074

HOSE

See Figure 08-35

1шт.

73

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 74

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

161841A1

HYD CONNECTOR

1шт.

77

KHJ2035

HOSE

1шт.

78

KHJ2035

HOSE

1шт.

79

KHJ2130

TEE

2шт.

80

KHJ2925

CONTROL VALVE

2шт.

82

KHJ2071

HOSE

See Figure 08-35

1шт.

83

KHJ2255

HOSE

See Figure 08-35

1шт.

120

150496A1

MOUNTING CLIP

1шт.

121

150498A1

MOUNTING CLIP

1шт.
