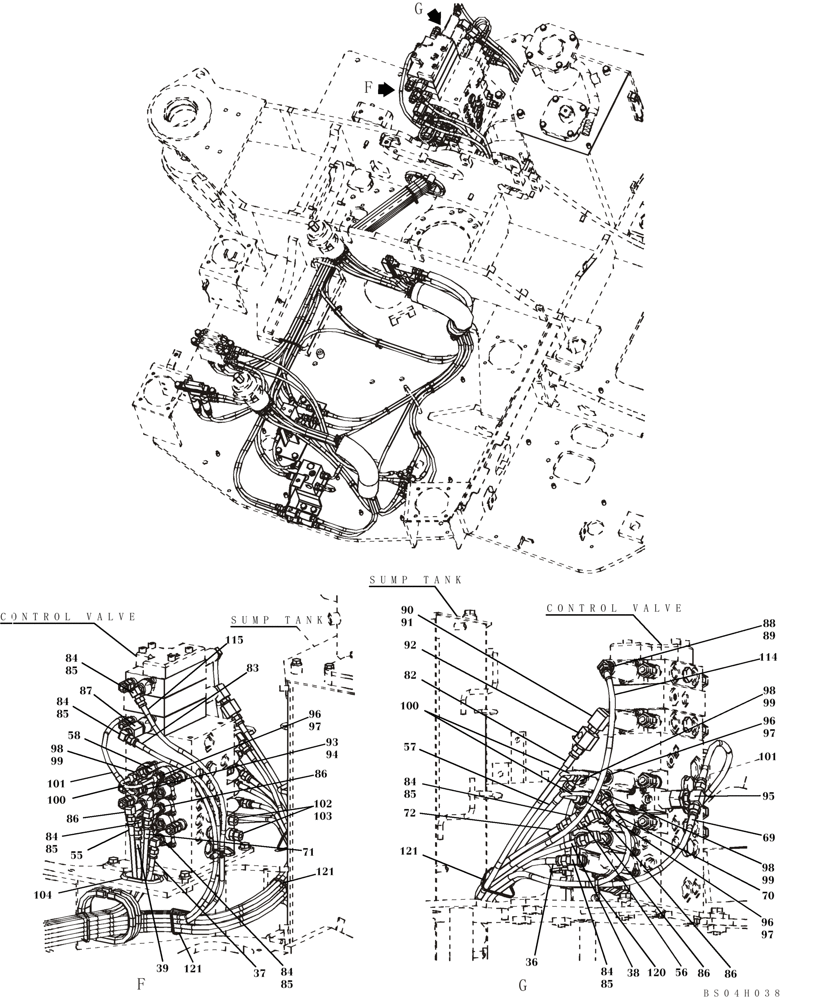

Запчасти Case CX80 (08-35) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

36

KHJ2255

HOSE

See Figure 08-36

1шт.

37

KHJ2057

HOSE

See Figure 08-36

1шт.

38

KHJ2067

HOSE

See Figure 08-36

1шт.

39

KHJ2057

HOSE

See Figure 08-36

1шт.

55

KHJ2057

HOSE

See Figure 08-37

1шт.

56

KHJ2066

HOSE

See Figure 08-37

1шт.

57

KHJ2066

HOSE

See Figure 08-37

1шт.

58

KHJ2064

HOSE

1шт.

69

KHJ2077

HOSE

See Figure 08-36

1шт.

70

KHJ2162

HOSE

See Figure 08-36

1шт.

71

KHJ2064

HOSE

See Figure 08-36

1шт.

72

KHJ2074

HOSE

See Figure 08-36

1шт.

82

KHJ2071

HOSE

See Figure 08-36

1шт.

83

KHJ2255

HOSE

See Figure 08-36

1шт.

84

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 85

6шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

KHJ1178

ELBOW

4шт.

87

KHJ1860

STUD

1шт.

88

150933A1

ELBOW

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

KHJ0719

ELBOW

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

KHJ0655

ADAPTER

1шт.

93

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 94

1шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

167321A1

TEE

1шт.

96

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 97

3шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

KHJ2131

TEE

Incl. 99

3шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

KAJ4701

HYD TUBE,6 mm ID x 8 mm OD

3шт.

101

KHJ2179

HOSE

1шт.

102

159026A1

SOCKET

Incl. 103

2шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

KRH1268

GROMMET

1шт.

114

KHJ2082

HOSE

1шт.

115

KHJ2076

HOSE,6mm ID x 2750mm L

1шт.

120

150496A1

MOUNTING CLIP

1шт.

121

150498A1

MOUNTING CLIP

1шт.
