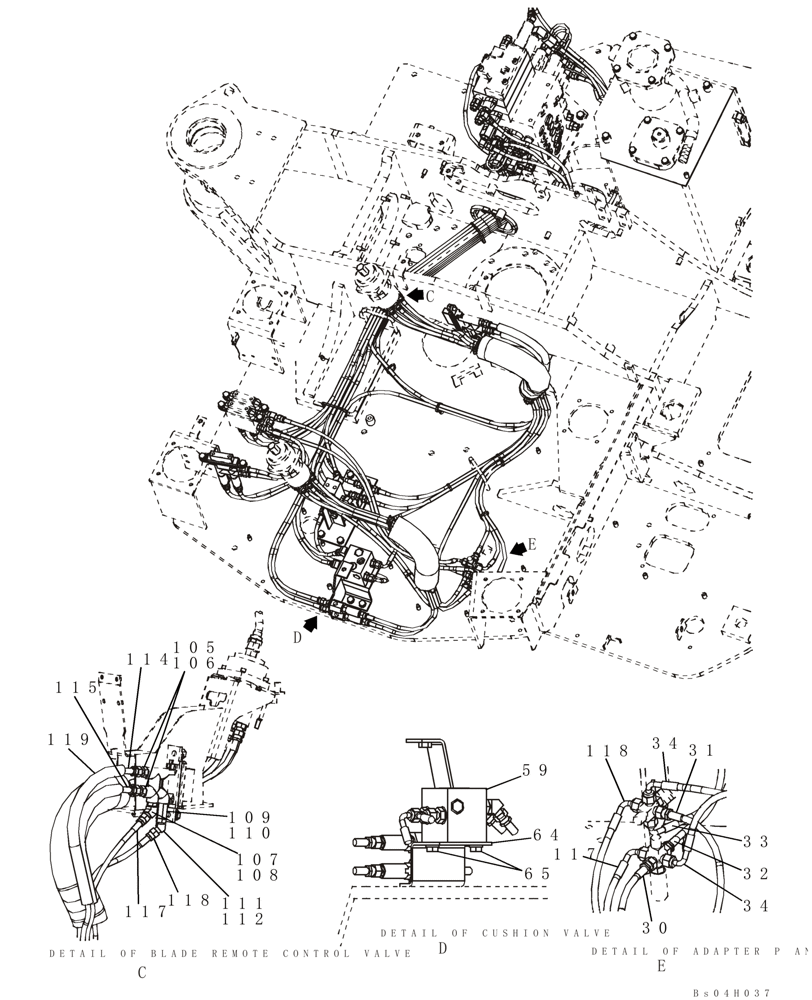

Запчасти Case CX80 (08-34) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

30

KHJ2057

HOSE

See Figure 08-33

1шт.

31

KHJ2059

HOSE

See Figure 08-33

1шт.

32

KHJ2051

HOSE

See Figure 08-33

1шт.

33

KHJ2090

HOSE

See Figure 08-33

1шт.

34

KHJ2088

HOSE

See Figure 08-36

2шт.

59

KHJ2317

VALVE, CUSHION

See Figure 08-87

1шт.

64

KAJ4685

BRACKET

1шт.

65

166052A1

BOLT

2шт.

105

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 106

2шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

KHJ0994

ADAPTER

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

162525A1

STUD

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

111

150933A1

ELBOW

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

114

KHJ2082

HOSE

1шт.

115

KHJ2076

HOSE,6mm ID x 2750mm L

1шт.

117

KHJ2090

HOSE

1шт.

118

KHJ2146

HOSE

1шт.

119

KHR4065

PLASTIC-RUBBER TUBE

2шт.
