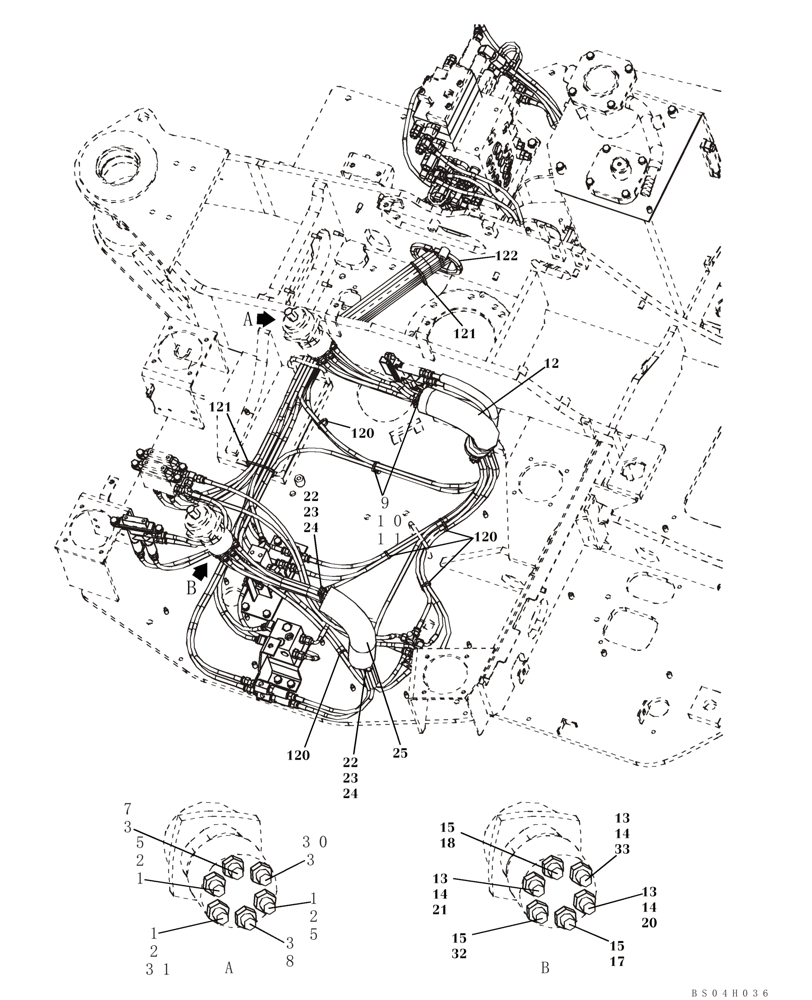

Запчасти Case CX80 (08-33) - PILOT CONTROL LINES - STANDARD, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2058

HOSE

See Figure 08-37

2шт.

7

KHJ2064

HOSE

See Figure 08-37

1шт.

8

KHJ2059

HOSE

See Figure 08-37

1шт.

9

150860A1

COLLAR

2шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

11

150496A1

MOUNTING CLIP

2шт.

12

KHJ2578

PROTECTOR

Hose

1шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 14

3шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

161841A1

HYD CONNECTOR

3шт.

17

KHJ2311

HOSE

See Figure 08-37

1шт.

18

KHJ2310

HOSE

See Figure 08-37

1шт.

20

KHJ2053

HOSE

See Figure 08-36

1шт.

21

KHJ2053

HOSE

See Figure 08-36

1шт.

22

150860A1

COLLAR

2шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

24

150496A1

MOUNTING CLIP

2шт.

25

KHJ2578

PROTECTOR

Hose

1шт.

30

KHJ2057

HOSE

See Figure 08-34

1шт.

31

KHJ2059

HOSE

See Figure 08-34

1шт.

32

KHJ2051

HOSE

See Figure 08-34

1шт.

33

KHJ2090

HOSE

See Figure 08-34

1шт.

120

150496A1

MOUNTING CLIP

1шт.

121

150498A1

MOUNTING CLIP

1шт.

122

150876A1

RUBBER BLOCK

1шт.
