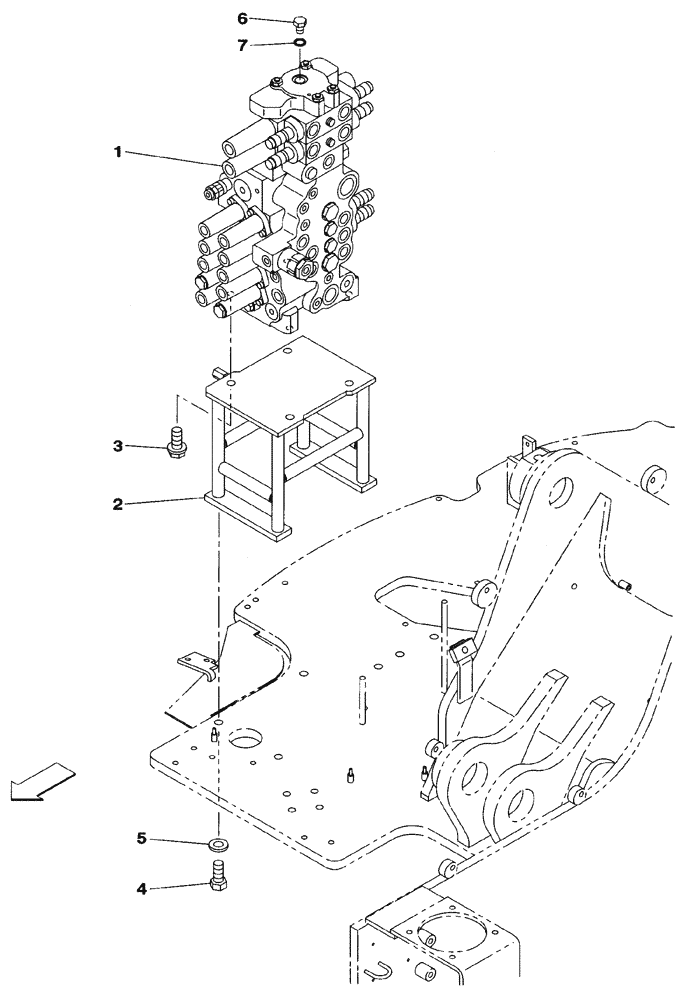

Запчасти Case CX75SR (08-23[01]) - CONTROL VALVE - SUPPORT - WITHOUT DOZER BLADE (08) - HYDRAULICS

1

KAJ4953

CONTROL VALVE

1шт.

See Figure(s) 08-200-01 01 - 08-200-06 01

1шт.

2

KAJ4763

BRACKET

1шт.

3

166352A1

BOLT

M12 x 30

4шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

5

150811A1

WASHER

4шт.

6

153105A1

PLUG

1шт.

Include(s) 7

1шт.

7

154475A1

O-RING

1шт.
