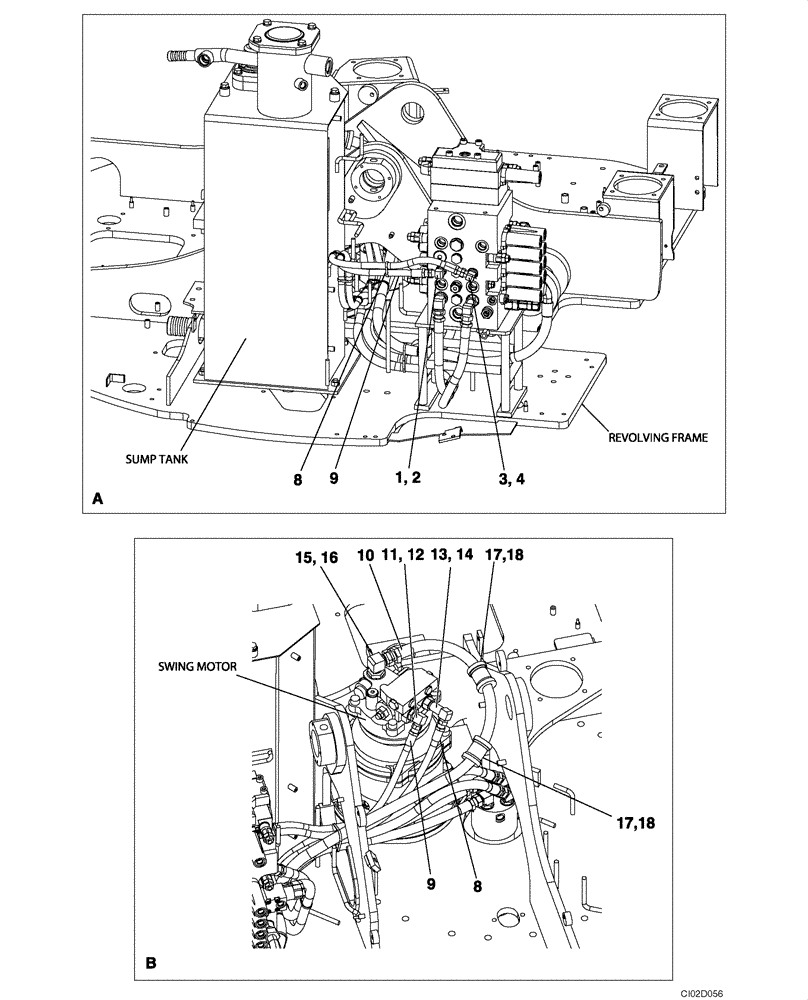

Запчасти Case CX75SR (08-14) - HYDRAULICS - SWING - JOINT, SWIVEL CENTER (08) - HYDRAULICS

1

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 2

1шт.

2

154475A1

O-RING

1шт.

3

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 4

1шт.

4

154475A1

O-RING

1шт.

8

KAJ4644

HYDRAULIC HOSE

1шт.

9

KAJ4645

HYDRAULIC HOSE,9.50 mm ID x 1280.00 mm

1шт.

10

KAJ4991

HYDRAULIC HOSE,19.05 mm ID x 1600.00 mm

1шт.

11

157935A1

ELBOW

Incl. 12

1шт.

12

154487A1

O-RING

1шт.

13

KHJ1043

ELBOW

Incl. 14

1шт.

14

154487A1

O-RING

1шт.

15

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 16

1шт.

16

154503A1

O-RING

1шт.

17

KHJ2022

HOSE CLAMP

2шт.

18

150496A1

MOUNTING CLIP

8шт.
