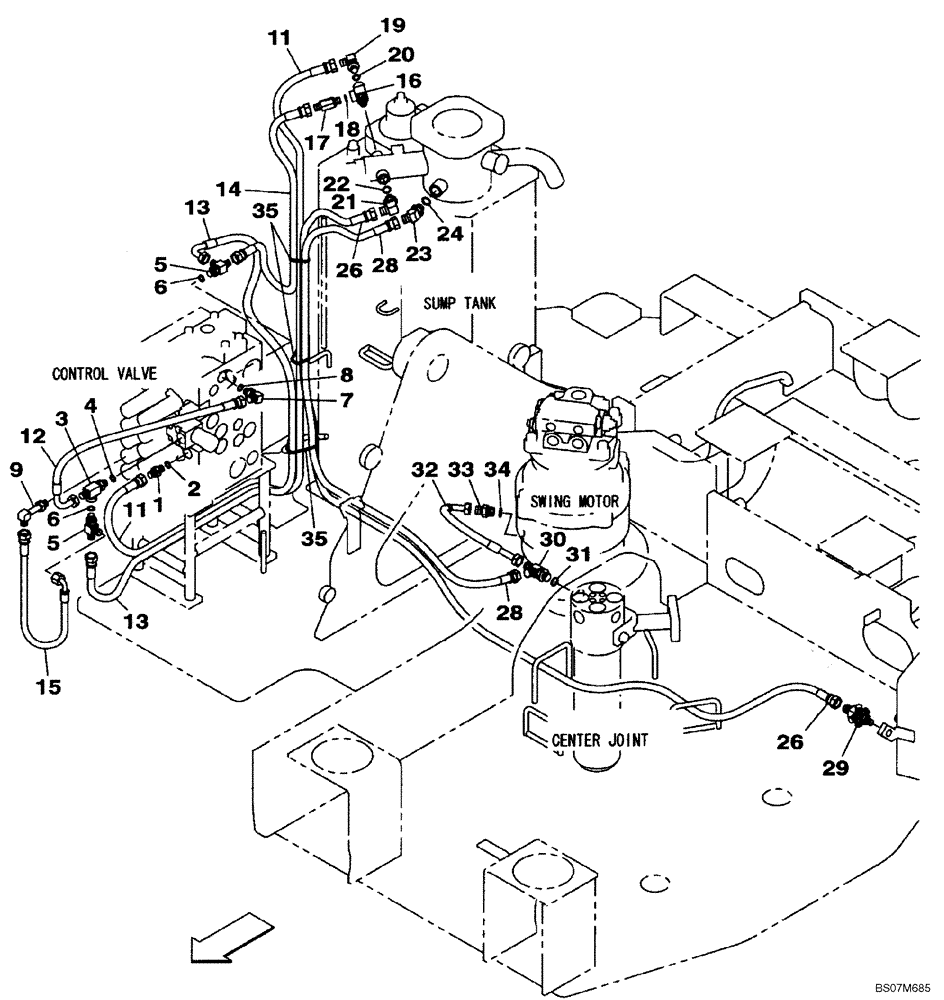

Запчасти Case CX75SR (08-10) - HYDRAULICS - DRAIN LINE, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

167666A1

FITTING

Incl. 4, If Used

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

159497A1

TEE

Incl. 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

KHJ1178

ELBOW

If Used

1шт.

NSS

NOT SOLD SEPARAT

HOSE ASSY., Incl. 11 - 15

1шт.

11

KHJ2060

HOSE

6X1700

1шт.

12

KHJ2292

HOSE

6X280

1шт.

13

KHJ2092

HOSE

6X1100

1шт.

14

KHJ2246

HOSE

6X600

1шт.

15

KHJ2309

HOSE

6X550, If Used

1шт.

16

KHJ12530

TEE

1шт.

17

162554A1

FITTING

Incl. 14

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 16

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 18

1шт.

22

154475A1

O-RING

1шт.

23

157584A1

ELBOW

Incl. 20

1шт.

24

154475A1

O-RING

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE ASSY., Incl. 26

1шт.

26

KHJ2382

HOSE

9X2300

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE ASSY., Incl. 28

1шт.

28

KHJ21740

HOSE

HOSE ASSY., Replaces KHJ2416

1шт.

29

KHJ1966

ADAPTER

1шт.

30

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 31

1шт.

31

154475A1

O-RING

1шт.

32

KHJ2294

HYDRAULIC HOSE,9.50 mm ID x 320.00 mm

1шт.

33

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 34

1шт.

34

154475A1

O-RING

1шт.

35

150496A1

MOUNTING CLIP

3шт.
