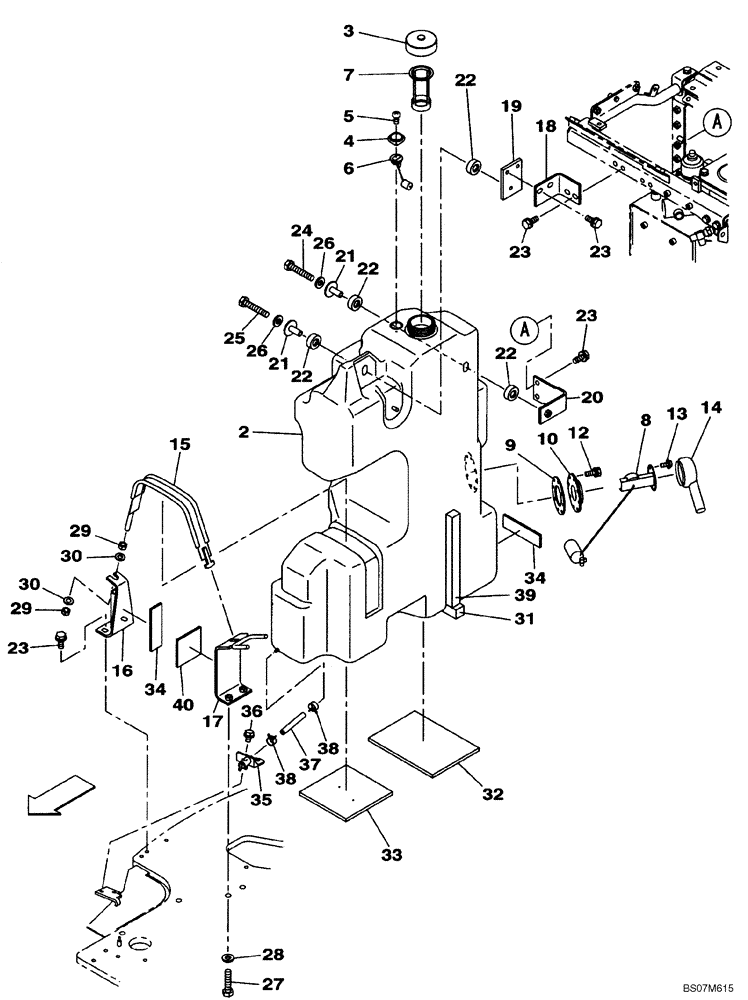

Запчасти Case CX75SR (03-01) - FUEL TANK (03) - FUEL SYSTEM

2

KAH1425

FUEL TANK

Incl. 3 - 6

1шт.

3

KAP1560

COVER

1шт.

4

KAH1409

COVER

1шт.

5

KAH1418

SELF-TAP SCREW,M4 x 8mm

M4X8

2шт.

6

KHH0451

GAUGE

1шт.

7

167847A1

FILTER

1шт.

8

KHR3278

SENSOR

1шт.

9

KAH1292

RUBBER SEAL

1шт.

10

KAH11800

FLANGE

FLANGE

1шт.

12

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6X16

8шт.

13

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

M5X12

5шт.

14

159698A1

COVER

1шт.

15

HKH0012

SECURING STRAP

550 mm

1шт.

16

KAH1426

SUPPORT

1шт.

17

KAH1342

BRACKET

1шт.

18

KAH1316

SUPPORT

1шт.

19

KAH1317

PLATE

1шт.

20

KAH10770

BRACKET

1шт.

21

KAH1260

SPACER

2шт.

22

KAH1263

INSULATOR BLOCK

4шт.

23

166052A1

BOLT

M10X25

8шт.

24

827-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

1шт.

25

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

1шт.

26

150409A1

WASHER

2шт.

27

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

28

151977A1

WASHER

2шт.

29

172R012VR

NUT

M12X1.25

2шт.

30

150811A1

WASHER

2шт.

31

KAH1319

FOAM

1шт.

32

KAH1320

RUBBER PAD

1шт.

33

KAH1321

RUBBER PAD

1шт.

34

KAH1322

RUBBER PAD

2шт.

35

HEH0133

DRAIN VALVE

1шт.

36

166346A1

BOLT,Sems, M10

M10X16

2шт.

37

KHH0471

FUEL HOSE

1шт.

38

KHH0379

HOSE CLIP

2шт.

39

KAH1328

RUBBER SEAL

1шт.

40

KAH1329

RUBBER PAD

1шт.
