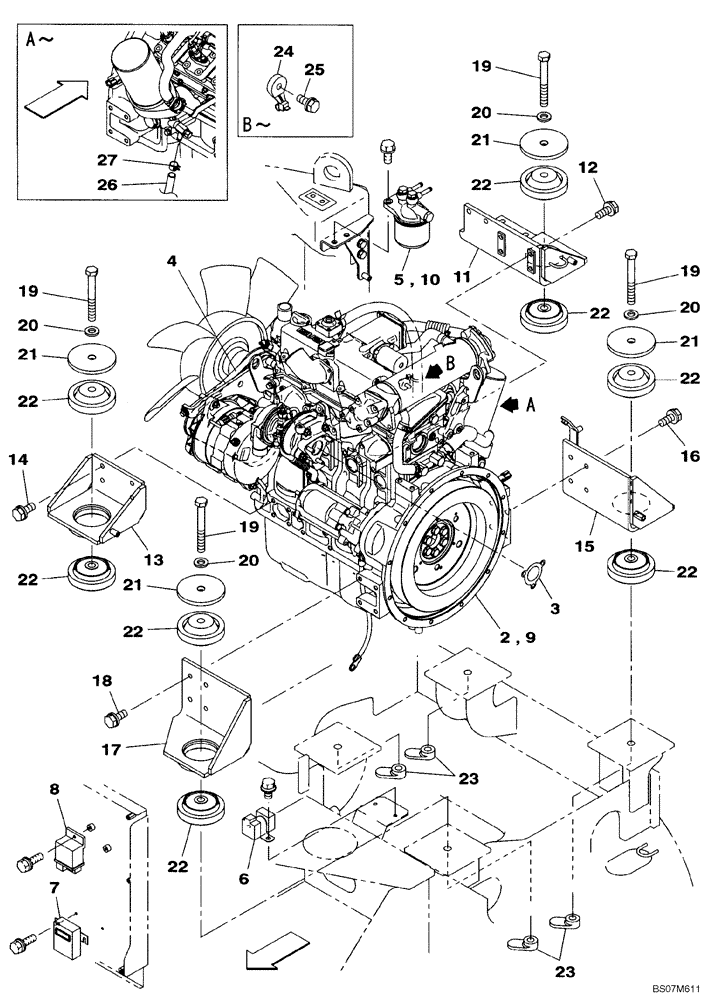

Запчасти Case CX75SR (10.012.01) - ENGINE MOUNTING (02) - ENGINE

2

KAH11610

ENGINE

Incl. 2-10

1шт.

3

NSS

NOT SOLD SEPARAT

GASKIT, EXHAUST

1шт.

4

KAH11100

SET OF 2 BELTS

2шт.

5

NSS

NOT SOLD SEPARAT

FILTER, FUEL

1шт.

6

150070A1

RELAY

1шт.

7

87714511

ECU

CONT., SPL

1шт.

8

87714512

TIMER

1шт.

9

KAH11150

ENGINE OIL FILTER

1шт.

10

167916A1

FUEL FILTER

1шт.

11

KAH10630

ENGINE MOUNT

1шт.

12

166347A1

BOLT,Sems, M10 x 30mm

M10X30

4шт.

13

KAH10650

ENGINE MOUNT

1шт.

14

166347A1

BOLT,Sems, M10 x 30mm

M10X30

4шт.

15

KAH11520

ENGINE MOUNT

1шт.

16

166052A1

BOLT

M10X25

4шт.

17

KAH11470

ENGINE MOUNT

1шт.

18

166052A1

BOLT

M10X25

4шт.

19

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

20

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

21

KRH10190

PLATE

4шт.

22

KNH10410

RUBBER MOUNTING

8шт.

23

KRH1251

SPECIAL NUT

4шт.

24

KHR2584

CLAMP

1шт.

25

KHJ1215

BOLT,Spcl

M8X25

1шт.

26

KHH10080

HOSE

1шт.

27

KHH0405

MOUNTING CLIP

1шт.
