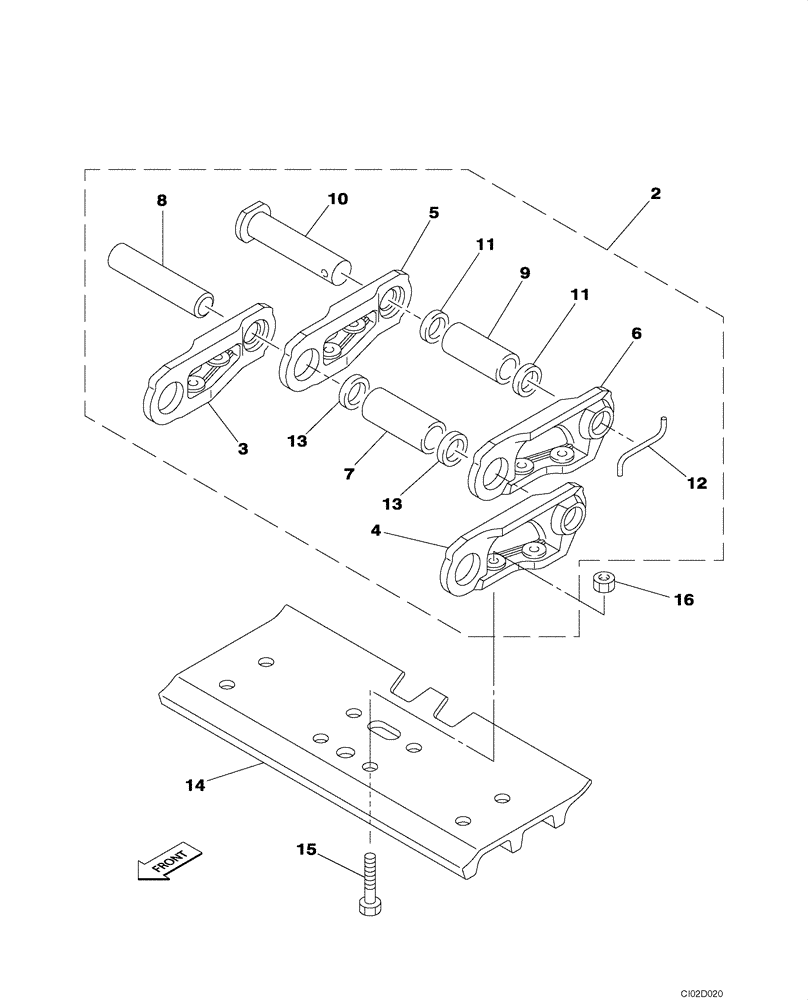

Запчасти Case CX75SR (05-04) - TRACK CHAINS - STEEL (11) - TRACKS/STEERING

KG0AA182-00

TRACK ASSY

Assembly, Steel 450mm

2шт.

KG0AA185-00

TRACK ASSY

Assembly, Steel 600mm

2шт.

2

KAA10230

CHAIN (CE)

Incl. 3 - 13

1шт.

3

KAA1195

LINK CHAIN

38шт.

4

KAA1196

LINK CHAIN

38шт.

5

KAA1197

LINK CHAIN

Master

1шт.

6

KAA1198

LINK CHAIN

Master

1шт.

7

KAA1199

BUSHING

38шт.

8

KAA1200

PIN

38шт.

9

KAA1201

BUSHING

1шт.

10

KAA10240

PIN

1шт.

11

KAA1203

BUSHING

2шт.

12

166247A1

LINCH PIN

1шт.

13

KAA1205

SEAL

1шт.

14

KAA1175

TRACK SHOE

450 mm (17-3/4 in)

39шт.

14

KAA1230

TRACK SHOE

600 mm (23-5/8 in)

39шт.

15

KAA1176

BOLT

156шт.

16

KAA1177

NUT

156шт.
