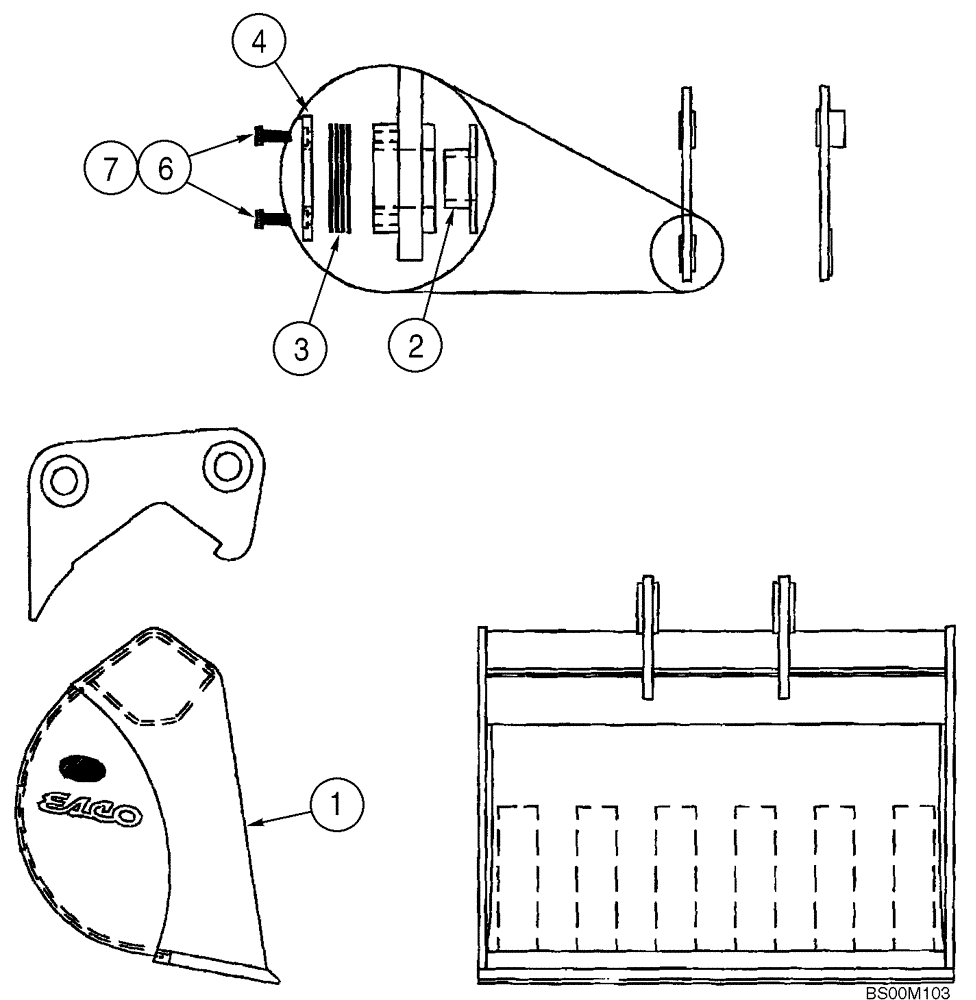

Запчасти Case CX75SR (09-64) - BUCKETS, ESCO - DITCH CLEANING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371447A1

BUCKET

0.46 cu m (0.60 cu yd)

1шт.

1

371449A1

BUCKET

0.53 cu m (0.70 cu yd)

1шт.

2

372024A1

BUSHING

1шт.

3

378623A1

SHIM

6шт.

4

378624A1

PLATE

1шт.

5

378625A1

PIN

Not Illustrated

2шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

378640A1

KIT

Adjustment; Incl. 2 - 7

1шт.
