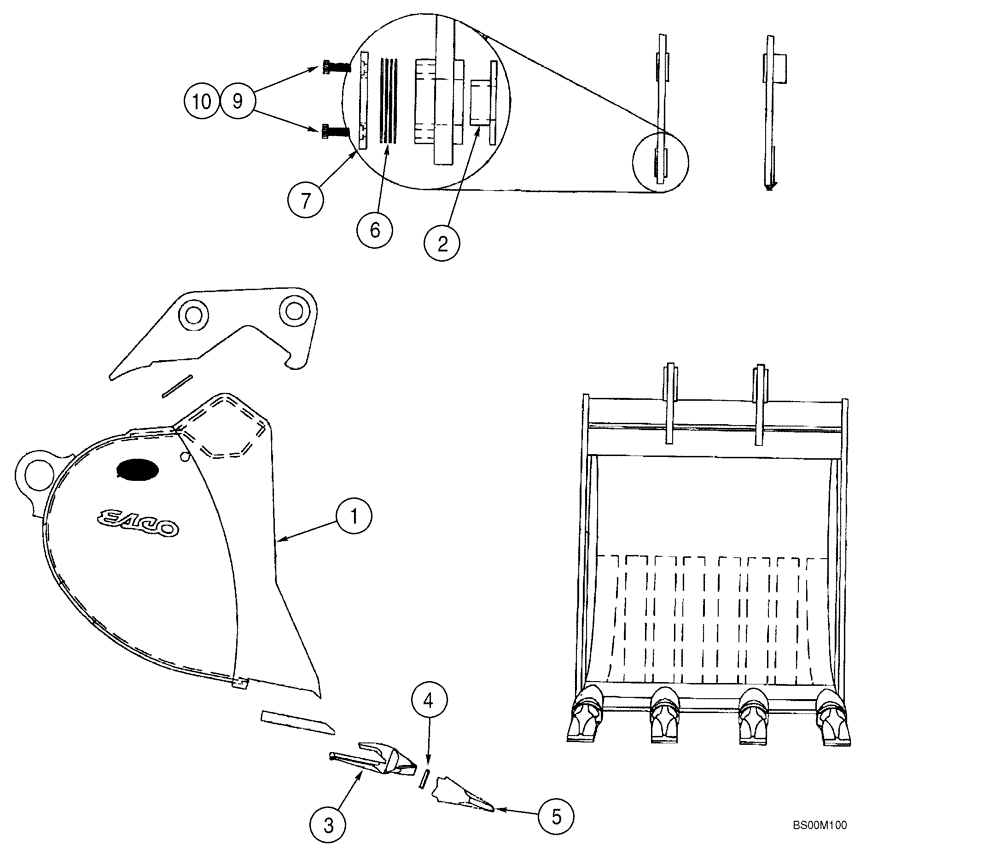

Запчасти Case CX75SR (09-63) - BUCKETS, ESCO - GENERAL PURPOSE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371444A1

BUCKET

With 3 Teeth; 0.18 cu m (0.24 cu yd)

1шт.

1

371445A1

BUCKET

With 4 Teeth; 0.26 cu m (0.35 cu yd)

1шт.

1

371446A1

BUCKET

With 5 Teeth, 0.34 cu m (0.45 cu yd)

1шт.

2

372024A1

BUSHING

1шт.

3

127554A1

ADAPTER

3-5шт.

4

233792A1

BUCKET TOOTH KEY

3-5шт.

5

127555A1

TOOTH

3-5шт.

6

378623A1

SHIM

5шт.

7

378624A1

PLATE

1шт.

8

378625A1

PIN

Not Illustrated

2шт.

9

892-11010

LOCK WASHER,M10

4шт.

10

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

378640A1

KIT

Incl. 2, 6 - 10

1шт.
