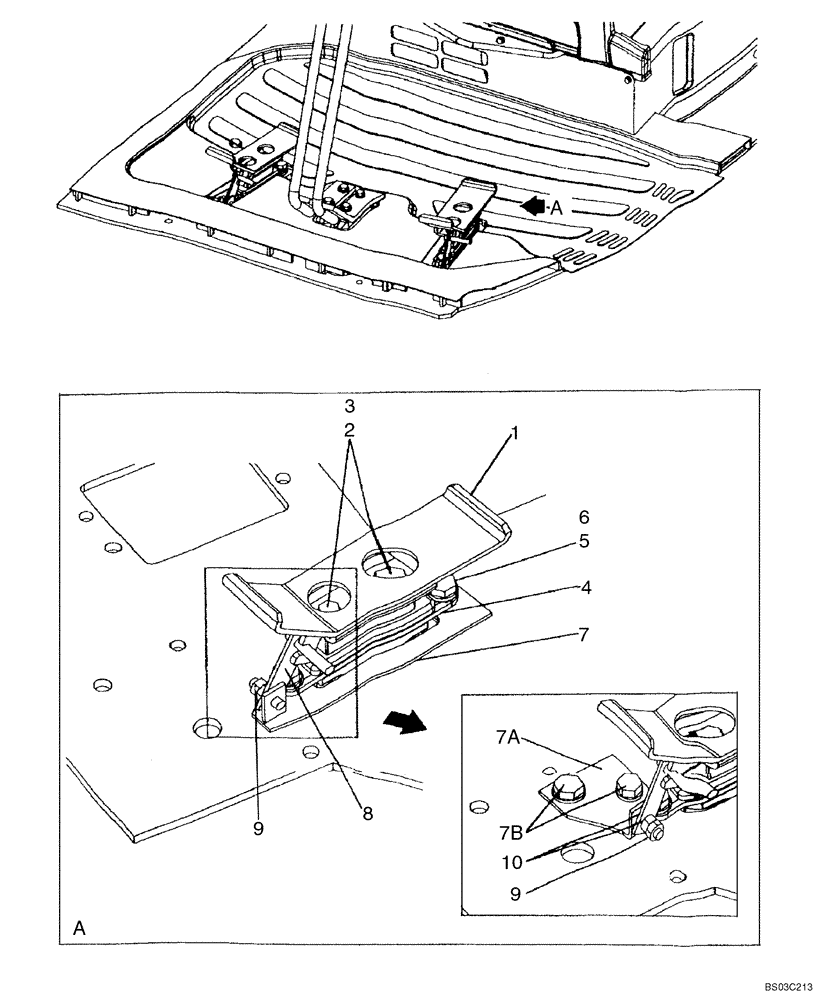

Запчасти Case CX75SR (09-60) - CONTROL, PEDAL, OPTIONAL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

1

KHJ2229

PEDAL

Foot

1шт.

2

162571A1

BOLT,High Strength, M8 x 16mm

2шт.

3

159500A1

WASHER

2шт.

4

KHJ1994

CONTROL BLOCK

See Figure 08-70

1шт.

5

150548A1

BOLT,High Strength, Hex, M10 x 20mm

M10 x 20; 10,9

2шт.

6

150604A1

WASHER

2шт.

7

KHJ2230

SUPPORT

No Longer Available; Order KHJ2568, REF 7A

1шт.

7a

KHJ2568

BRACKET

Incl. 7B

1шт.

7b

166346A1

BOLT,Sems, M10

2шт.

8

KHJ2231

LEVER

1шт.

9

157770A1

NUT

2шт.

10

157558A1

WASHER

2шт.
