(09-35[02]) - CONTROLS, TRAVEL - OPERATORS COMPARTMENT

Запчасти Case CX75SR (09-35[02]) - CONTROLS, TRAVEL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

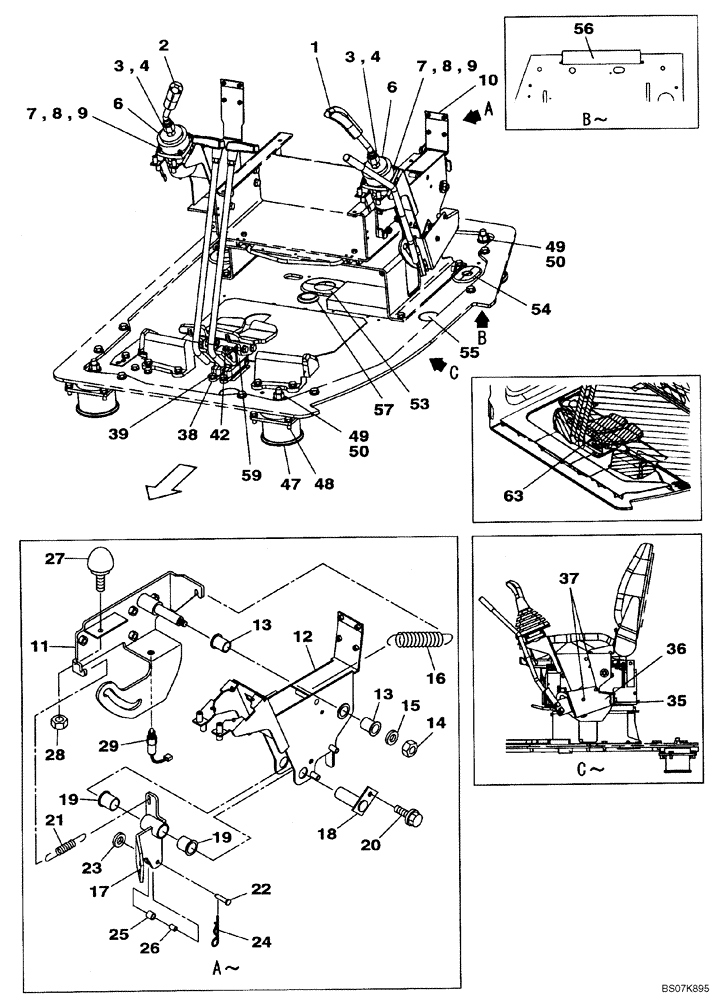

Схема запчастей Case CX75SR - (09-35[02]) - CONTROLS, TRAVEL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
1
17
3
57
10
13
21
38
11
8
37
24
13
3
49
39
29
54
7
4
12
14
6
50
2
50
19
8
9
20
15
23
42
19
25
9
47
26
7
49
28
55
16
6
63
56
27
35
36
18
59
22
53
4
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

DAC08070486 - AFTER

1шт.

1

KHJ2894

GRIP

LH - Granite Black

1шт.

2

KHJ2895

GRIP

RH - Granite Black

1шт.

3

151154A1

JAM NUT

2шт.

4

151302A1

CAP

2шт.

6

KHJ2925

CONTROL VALVE

See Figure 08-52 02

2шт.

7

862-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

8шт.

8

183-106VR

SPRING WASHER

8шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

10

KHJ2643

SUPPORT ASSY.

1шт.

11

KHJ2641

HOLDER

1шт.

12

KHJ2642

HOLDER

1шт.

13

HKJ0081

BUSHING

2шт.

14

829-1412

NUT,M12, Cl 10.9

1шт.

15

151161A1

WASHER

1шт.

16

KHJ2306

SPRING

1шт.

17

KHJ1979

ARM

1шт.

18

KHJ1980

PIN

1шт.

19

KHJ1797

BUSHING

2шт.

20

166345A1

BOLT

1шт.

21

KHJ1982

SPRING

1шт.

22

KHJ2032

HEADED PIN

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

24

153077A1

COTTER PIN

1шт.

25

KHJ1795

NEEDLE BEARING

1шт.

26

KHJ1796

BUSHING

1шт.

27

151108A1

STOP

1шт.

28

153604A1

NUT

M10X1.25 HIGH STRENGHT

1шт.

29

166459A1

LIMIT SWITCH

1шт.

35

167291A1

LINING

1шт.

36

KHJ2644

COVER

1шт.

37

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

38

KHJ13980

CONTROL BLOCK

See Figure 08-53

1шт.

39

166351A1

BOLT,Sems, M10 x 20mm

M10X20

4шт.

42

167182A1

BOLT,Sems, M8 x 25mm

M8X25

4шт.

47

KHJ1471

INSULATOR BLOCK

RUBBER BLOCK

4шт.

48

166052A1

BOLT

M10X25

16шт.

49

150714A1

WASHER

4шт.

50

150760A1

NUT

4шт.

53

162624A1

GROMMET

1шт.

54

KHJ19850

GROMMET

Replaces 162623A1

1шт.

56

KHJ2406

SEAL

1шт.

57

167261A1

GROMMET

1шт.

59

KHJ2007

BRACKET

1шт.

62

KHJ19880

NOISE PROTECTION

Located Under Seat, Not Shown

1шт.

63

163782A1

SKIRT COVER

2шт.
