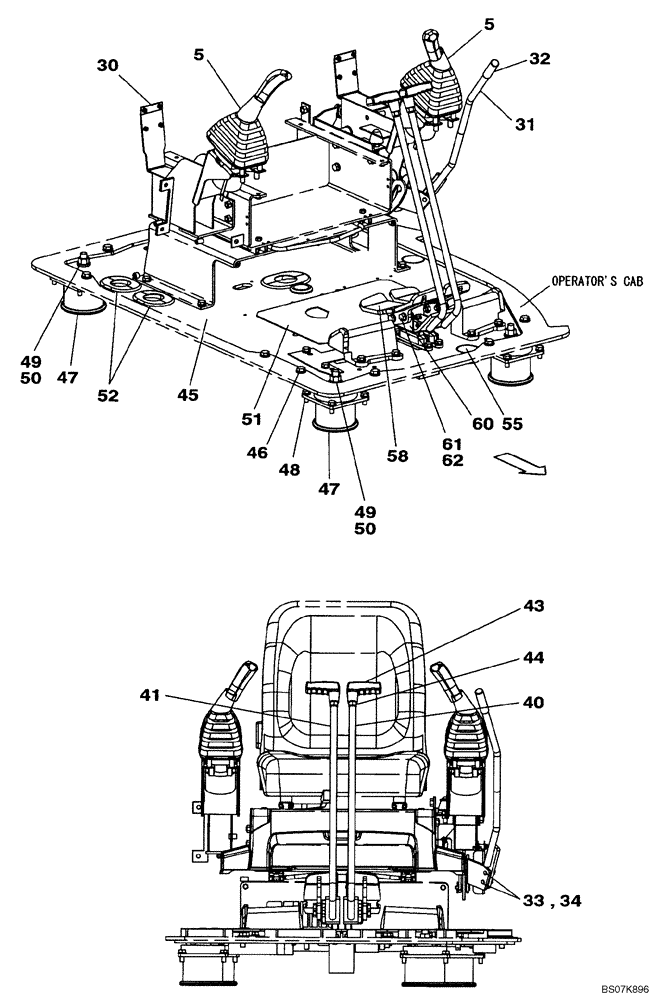

Запчасти Case CX75SR (09-34[01]) - CONTROLS, TRAVEL - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

5

KHN16760

BELLOWS

Replaces KHN3680

2шт.

DAC08070101 - DAC08070485

1шт.

30

KHJ1975

FRAME ASSY

1шт.

31

KHJ2919

CONTROL LEVER

1шт.

32

159547A1

CAP

1шт.

33

150548A1

BOLT,High Strength, Hex, M10 x 20mm

M10X20

2шт.

34

150604A1

WASHER

2шт.

40

KHJ2546

CONTROL LEVER

1шт.

41

KHJ2547

CONTROL LEVER

1шт.

43

150347A1

KNOB

2шт.

44

150373A1

NUT

M12X1.25 HIGH STRENGHT

2шт.

45

KHJ2617

FLOOR

1шт.

46

166352A1

BOLT

M12X30

10шт.

47

KHJ1471

INSULATOR BLOCK

RUBBER BLOCK Replaces 167875A1

4шт.

48

166052A1

BOLT

M10X25

16шт.

49

150714A1

WASHER

4шт.

50

150760A1

NUT

4шт.

51

KHJ19630

COVER

COVER, Replaces KHJ2420

1шт.

52

KHJ19840

GROMMET

Replaces 162625A1

2шт.

55

KHJ2404

SEAL

2шт.

58

KHJ1629

PEDAL

2шт.

60

KHJ2008

BRACKET

1шт.

61

150555A1

BOLT,High Strength, Hex, M10 x 30mm

M10X30

4шт.

62

150604A1

WASHER

4шт.
