(09-33) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH AUXILIARY HYDRAULICS

Запчасти Case CX75SR (09-33) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH AUXILIARY HYDRAULICS (09) - CHASSIS/ATTACHMENTS

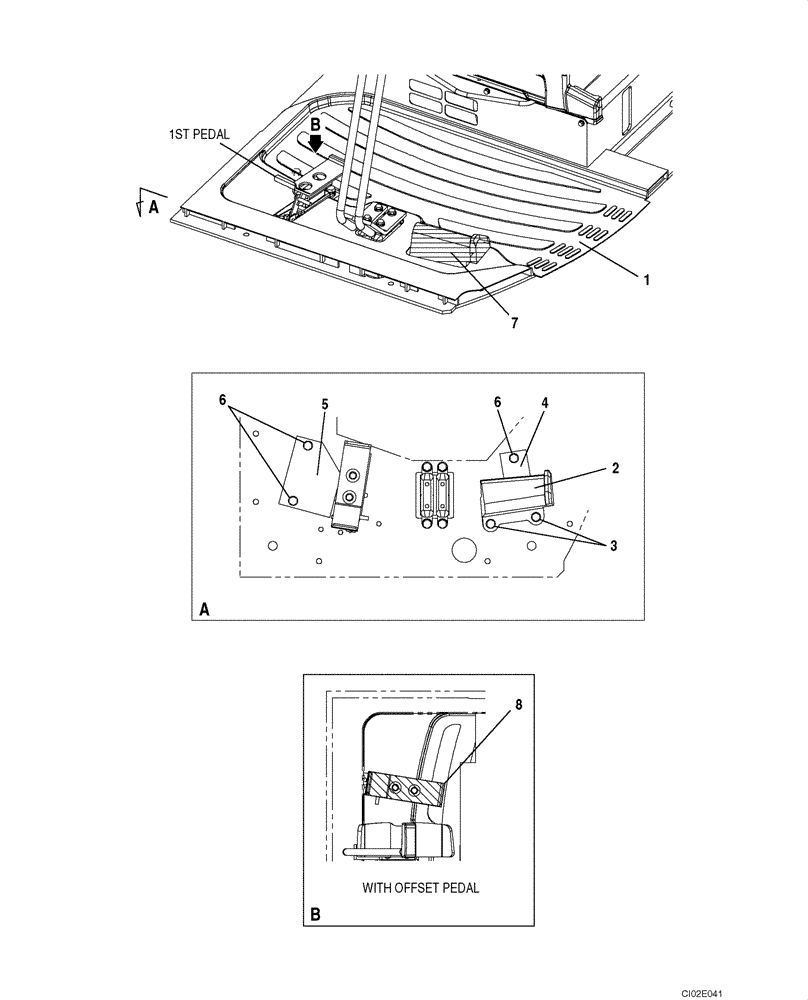

Схема запчастей Case CX75SR - (09-33) - MAT, FLOOR - OPERATORS COMPARTMENT, MODELS WITH AUXILIARY HYDRAULICS (09) - CHASSIS/ATTACHMENTS
5
1
3
6
7
2
6
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2119

FLOOR MAT

1шт.

2

KHJ1636

FOOT REST

Left Hand

1шт.

3

166052A1

BOLT

2шт.

4

KHJ2296

COVER

1шт.

5

KHJ2571

COVER

1шт.

6

166346A1

BOLT,Sems, M10

3шт.

7

KHP1400

COVER

1шт.

8

163782A1

SKIRT COVER

1шт.
