(09-30) - CONTROL, DOZER BLADE - OPERATORS COMPARTMENT

Запчасти Case CX75SR (09-30) - CONTROL, DOZER BLADE - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

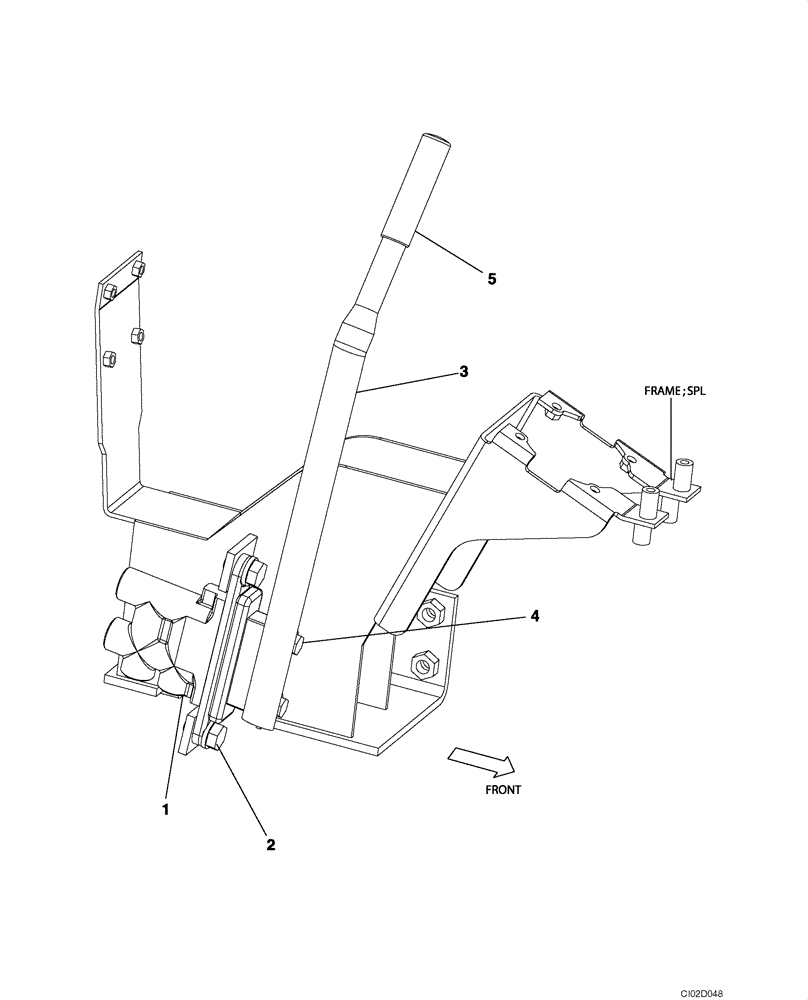

Схема запчастей Case CX75SR - (09-30) - CONTROL, DOZER BLADE - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
1
3
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1986

REMOTE CONTROL VALVE

See Figure 08-86

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

2шт.

3

KHJ2898

LEVER ASSY.

1шт.

4

166345A1

BOLT

2шт.

5

KRC0032

PROTECTION CAP

1шт.
