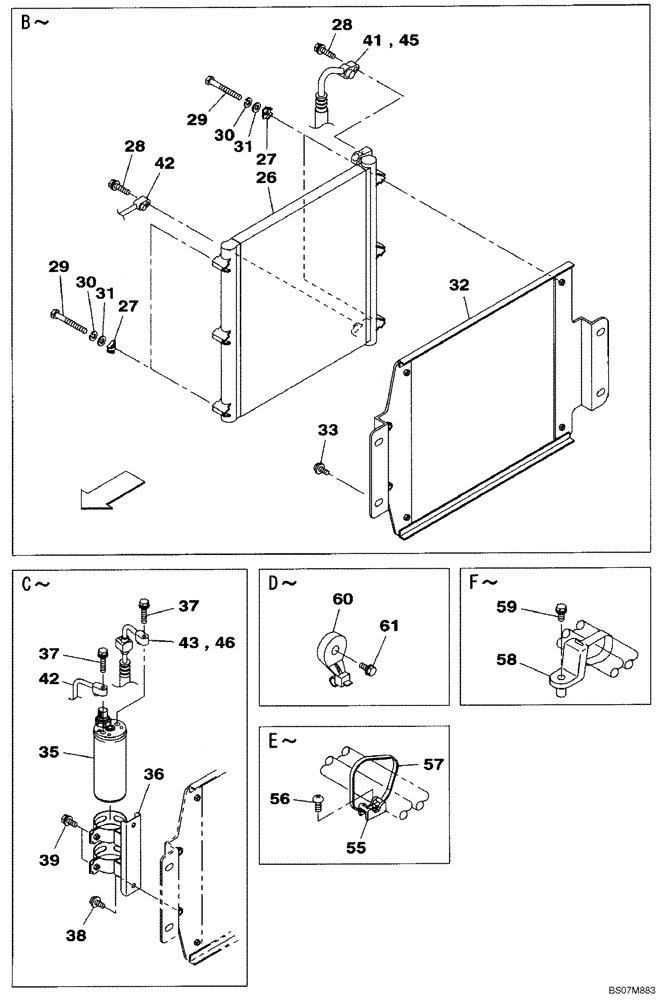

Запчасти Case CX75SR (09-23) - AIR CONDITIONING SYSTEM - CONDENSER (09) - CHASSIS/ATTACHMENTS

26

KHR3538

CONDENSER

1шт.

27

KHR2593

BRACKET

4шт.

28

KHR3567

BOLT,Spcl

M6X25

2шт.

29

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

30

183-106VR

SPRING WASHER

4шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

32

KAR10400

BRACKET

1шт.

33

166052A1

BOLT

M10X5

4шт.

35

KHR3539

RECEIVER-DRYER

1шт.

36

KHR13600

BRACKET

1шт.

37

162043A1

BOLT,Spcl, M6

M6X28

2шт.

38

166350A1

BOLT

M8X20

2шт.

39

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6X16

2шт.

41

KHR20280

HOSE

1шт.

42

KHR18960

HYD TUBE

1шт.

43

KHR18940

HOSE

1шт.

45

158064A1

PLASTIC-RUBBER TUBE

1шт.

46

151175A1

PLASTIC-RUBBER TUBE

1шт.

55

150860A1

COLLAR

6шт.

56

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

6шт.

57

150496A1

MOUNTING CLIP

8шт.

58

KHR2581

CLAMP

1шт.

59

KHJ1215

BOLT,Spcl

M8X25

1шт.

60

KHR2584

CLAMP

1шт.

61

KHJ1215

BOLT,Spcl

M8X25

1шт.
