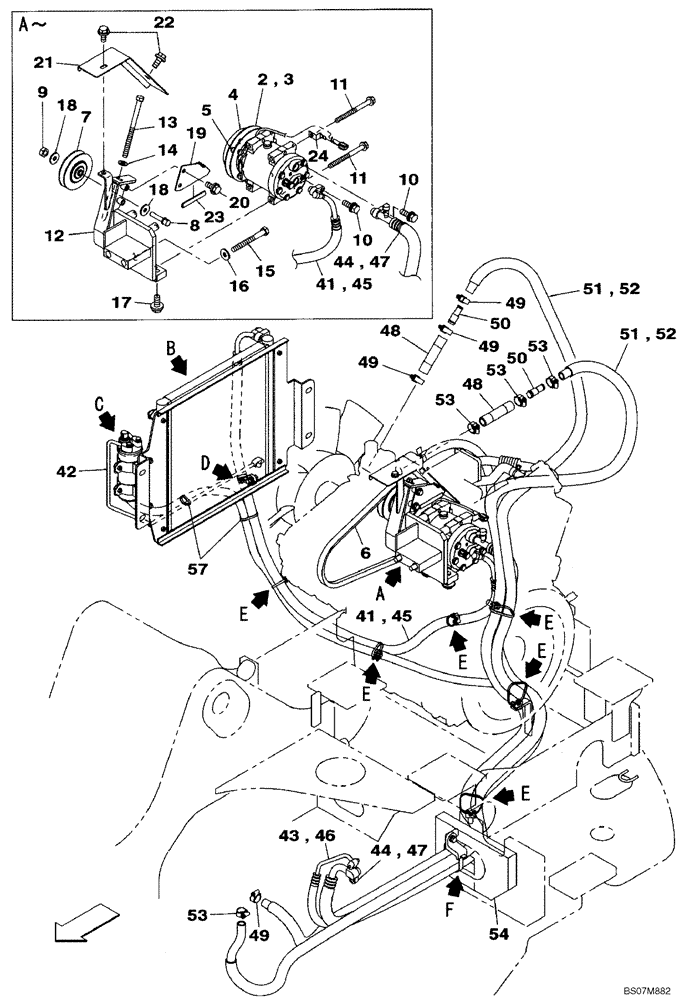

Запчасти Case CX75SR (09-22) - AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

2

KHR3197

COMPRESSOR

1шт.

KHR3197R

REMAN-COMPRESSOR

CX75SR Tier 3 ASN DAC075K3N8SLA7101 (3/08-)

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

3

KHR3198

CLUTCH

1шт.

4

KHR3974

PROTECTIVE COVER

1шт.

5

KHR3975

BOLT

3шт.

6

KHR18980

BELT

1шт.

7

KHR11760

PULLEY

1шт.

8

157299A1

SHAFT

1шт.

9

157292A1

NUT

M10

1шт.

10

162457A1

SPECIAL BOLT,Spcl

M8 x 25

2шт.

11

KAR0921

BOLT,Spcl

M8X90

4шт.

12

KAR10441

SUPPORT ASSY.

BRACKET, Replaces KAR10440

1шт.

13

KHR3171

BOLT,Spcl

M8X160

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

M8 x 55

1шт.

15

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

16

150811A1

WASHER

2шт.

17

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

2шт.

18

151977A1

WASHER

2шт.

19

KAR12050

BRACKET

Replaces KAR10460

1шт.

20

166350A1

BOLT

M8X20

2шт.

21

KAR10450

COVER

1шт.

22

166350A1

BOLT

M8X20

2шт.

23

KHR19030

SUPPORT LINING

1шт.

24

158962A1

CLIP

1шт.

41

KHR20280

HOSE

1шт.

42

KHR18960

HYD TUBE

1шт.

43

KHR18940

HOSE

1шт.

44

KHR18950

HOSE

1шт.

45

158064A1

PLASTIC-RUBBER TUBE

19x1500

1шт.

46

151175A1

PLASTIC-RUBBER TUBE

1шт.

47

KBR10790

PLASTIC-RUBBER TUBE

25x1800

1шт.

48

KHR0425

HOSE

2шт.

49

157915A1

CLAMP

4шт.

50

KAR0215

NIPPLE, LUBE

NIPPLE

2шт.

51

KHR20250

HOSE

13x2400

2шт.

52

MPR2207

PLASTIC-RUBBER TUBE

22x2300

2шт.

53

157915A1

CLAMP

4шт.

54

KAR1436

SEAL

1шт.

57

150496A1

MOUNTING CLIP

8шт.
