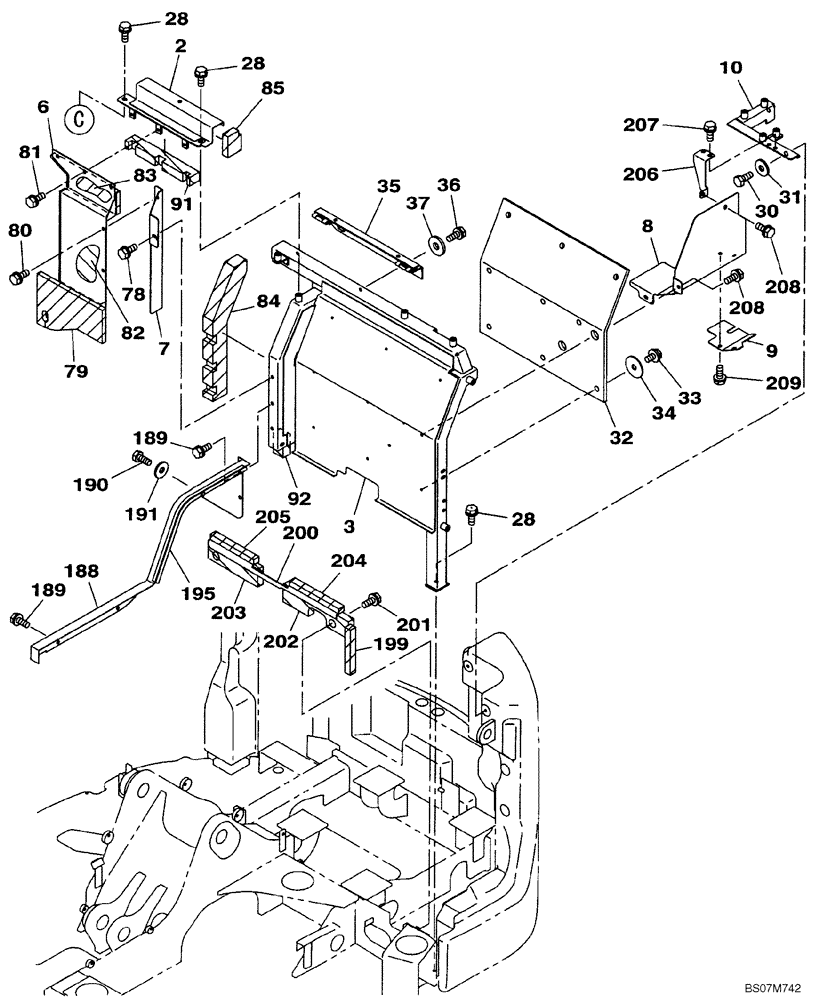

Запчасти Case CX75SR (09-12) - FRAMES, COVERS - PARTITION (09) - CHASSIS/ATTACHMENTS

KAN12371Y2

ATTACHMENT, HOUSE, Incl. Ref. 2, 3, 6, 7, 8, 9 And Ref. 4 & 5 on Fig. 09-11

1шт.

2

KAN12060Y2

SUPPORT ASSY.

Replaces KAN12060

1шт.

3

KAN12090

SUPPORT ASSY.

1шт.

6

KAN12040

COVER

1шт.

7

KAN12050

BRACKET

1шт.

8

KAN12020

COVER

1шт.

9

KAN12030

COVER

1шт.

10

KAN12080

SUPPORT ASSY.

1шт.

28

166052A1

BOLT

M10X25

5шт.

30

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

31

151977A1

WASHER

2шт.

32

KAN11590

INSULATOR

1шт.

33

166345A1

BOLT

M8X16

8шт.

34

163356A1

WASHER

9шт.

35

KAN11470

BRACKET

1шт.

36

166347A1

BOLT,Sems, M10 x 30mm

M10X30

2шт.

37

150900A1

WASHER

2шт.

78

166052A1

BOLT

M10X25

1шт.

79

KAN12200

NOISE PROTECTION

1шт.

80

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

81

166052A1

BOLT

M10X25

1шт.

82

KAN12170

NOISE PROTECTION

1шт.

83

KAN12160

NOISE PROTECTION

1шт.

84

KAN12120

NOISE PROTECTION

1шт.

85

KAN11820

SEAL

1шт.

91

KBN1035

FOAM INSULATION

1шт.

92

KAN12210

NOISE PROTECTION

1шт.

188

KAN12100Y2

COVER

Replaces KAN12100

1шт.

189

166052A1

BOLT

M10X25

4шт.

190

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

191

151977A1

WASHER

1шт.

195

KAN3478

SEALING STRIP

1шт.

199

KAN3482

SEAL

1шт.

200

KAN12110

COVER

1шт.

201

166052A1

BOLT

M10X25

2шт.

202

KAN11770

SEAL

1шт.

203

KAN12130

SEAL

1шт.

204

KAN11790

SEAL

1шт.

205

KAN11800

SEAL

1шт.

206

KAN12140

BRACKET

1шт.

207

166052A1

BOLT

M10X25

2шт.

208

166052A1

BOLT

M10X25

3шт.

209

166052A1

BOLT

M10X25

2шт.
