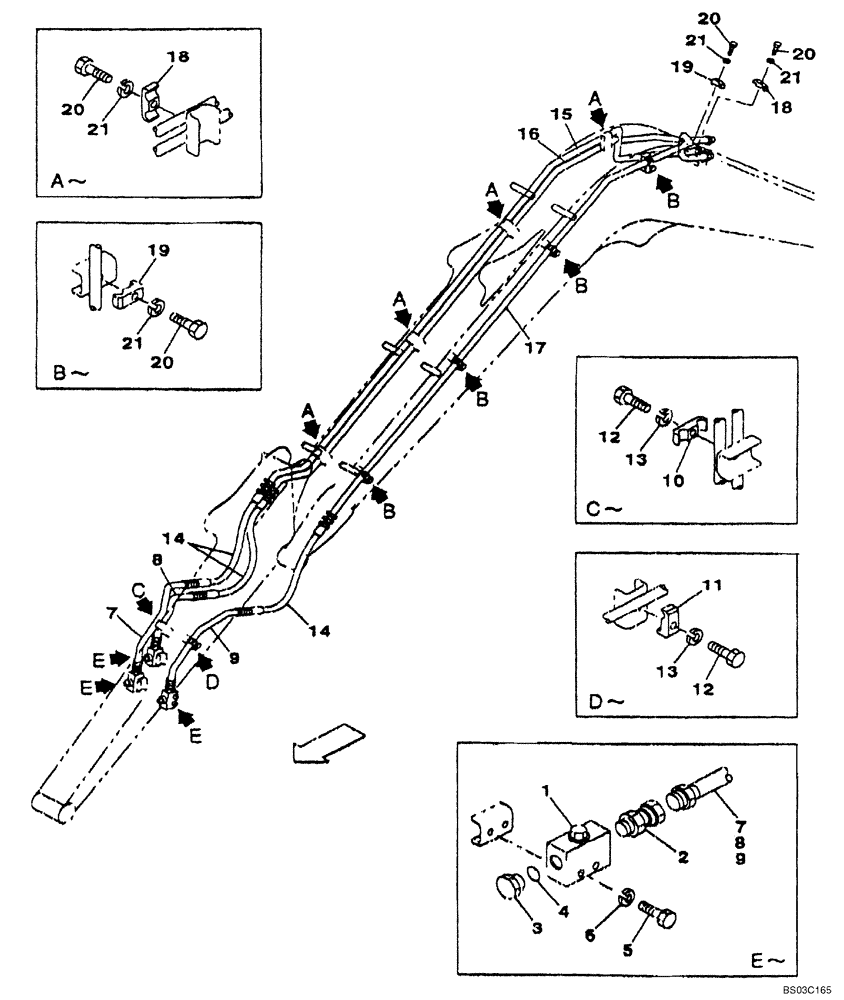

Запчасти Case CX75SR (08-73) - HYDRAULICS, AUXILIARY ATTACHMENT, 1,70 M (5 FT 7 IN) ARM - SECOND OPTION LINE (08) - HYDRAULICS

1

KHV10670

VALVE SECTION

Stop

3шт.

2

KHJ1940

ADAPTER

3шт.

3

159085A1

PLUG

Incl. 4

3шт.

4

154487A1

O-RING

1шт.

5

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

6

150409A1

WASHER

6шт.

7

KAV2524

TUBE,12.7 mm ID x 17.3 mm OD

1шт.

8

KAV2525

TUBE,12.7 mm ID x 17.3 mm OD

1шт.

9

KAV2526

TUBE,12.7 mm ID x 17.3 mm OD

1шт.

10

168551A1

COLLAR

1шт.

11

169149A1

COLLAR

1шт.

12

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

13

150811A1

WASHER

2шт.

14

KAV2530

HYDRAULIC HOSE,9.50 mm ID x 650.00 mm

3шт.

15

KAV2527

TUBE,12.7 mm ID x 17.3 mm OD

1шт.

16

KAV2528

TUBE,12.7 mm ID x 17.3 mm OD

1шт.

17

KAV2529

TUBE,12.7 mm ID x 17.3 mm OD

1шт.

18

168551A1

COLLAR

5шт.

19

169149A1

COLLAR

5шт.

20

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

10шт.

21

150811A1

WASHER

10шт.
