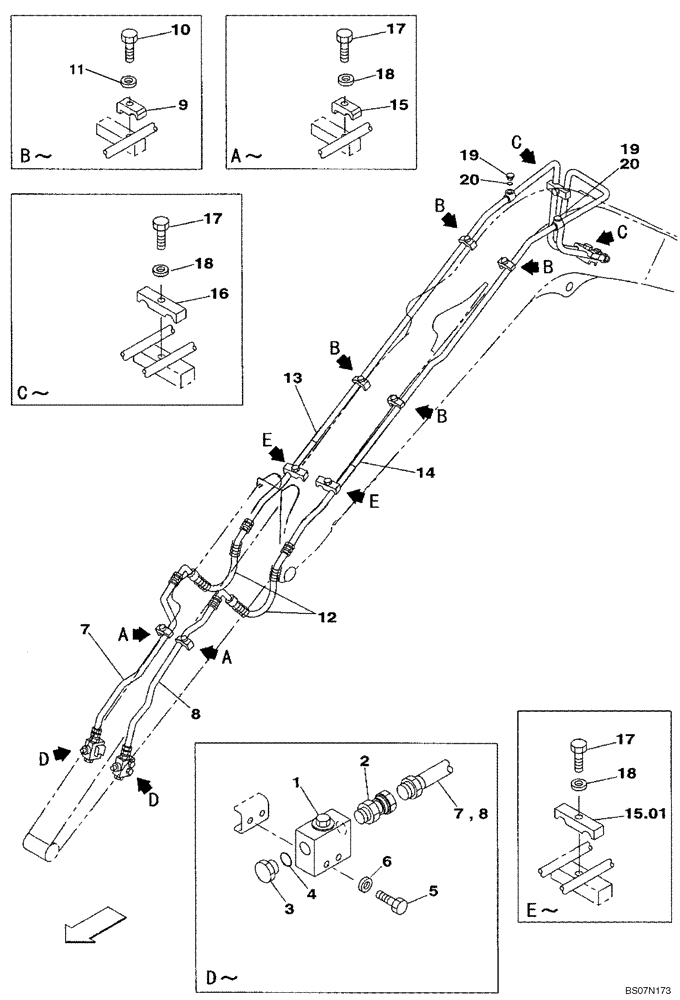

Запчасти Case CX75SR (08-68) - HYDRAULICS, AUXILIARY ATTACHMENT - 2,10 M (6 FT 11 IN) ARM (08) - HYDRAULICS

1

KHV10680

VALVE SECTION

2шт.

2

167248A1

FITTING

2шт.

3

152924A1

PLUG

Incl. 4

2шт.

4

154503A1

O-RING

1шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

6

150811A1

WASHER

4шт.

7

KAV2557

TUBE,16.1 mm ID x 21.7 mm OD

1шт.

8

KAV2558

TUBE,16.1 mm ID x 21.7 mm OD

1шт.

9

166401A1

HALF-FLANGE

4шт.

10

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

11

150811A1

WASHER

4шт.

12

167831A1

HYDRAULIC HOSE,15.9mm ID x 900mm L

2шт.

13

KAV2522

TUBE,16.1 mm ID x 21.7 mm OD

1шт.

14

KAV2523

TUBE,16.1 mm ID x 21.7 mm OD

1шт.

15

166401A1

HALF-FLANGE

2шт.

15.01

KAV1583

COLLAR

2шт.

16

KAV0486

PIPE CLAMP

2шт.

17

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

8шт.

18

150811A1

WASHER

8шт.

19

152924A1

PLUG

Incl. 20

2шт.

20

154503A1

O-RING

1шт.
