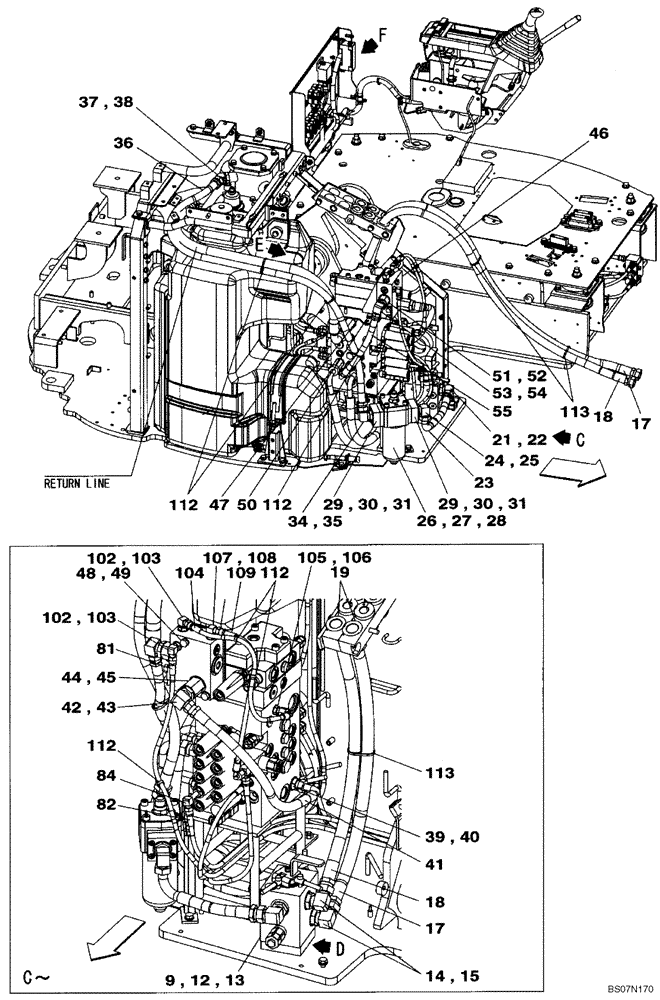

Запчасти Case CX75SR (08-62) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE (08) - HYDRAULICS

9

KHJ2020

HYDRAULIC VALVE

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

13

150409A1

WASHER

4шт.

14

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 15

2шт.

15

154503A1

O-RING

1шт.

17

KAJ4717

HYDRAULIC HOSE,15.88 mm ID x 2100.00 mm

1шт.

18

KAJ4765

HYDRAULIC HOSE,15.88 mm ID x 2000.00 mm

1шт.

19

KHJ2023

HOSE CLAMP

2шт.

21

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 22

1шт.

22

154503A1

O-RING

1шт.

23

KAJ4848

HYDRAULIC HOSE,19.05 mm ID x 280.00 mm

1шт.

24

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

26

163278A1

FILTER

1шт.

27

163279A1

HYDRAULIC OIL FILTER

1шт.

28

159706A1

INDICATOR

Incl. 29

1шт.

29

154569A1

O-RING

2шт.

30

163275A1

FLANGE

2шт.

31

862-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

8шт.

34

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 35

1шт.

35

154503A1

O-RING

1шт.

36

163520A1

HYDRAULIC HOSE,19.00 mm ID x 1650.00 mm

1шт.

37

157586A1

ELBOW

Incl. 38

1шт.

38

154503A1

O-RING

1шт.

39

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 40

1шт.

40

154487A1

O-RING

1шт.

41

KAJ5042

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

1шт.

42

157936A1

ELBOW

Incl. 43

1шт.

43

154503A1

O-RING

1шт.

44

152012A1

ELEC CONNECTOR

Incl. 45

1шт.

45

154503A1

O-RING

1шт.

46

KHJ1473

VALVE

See Figure 08-64

1шт.

47

KAJ10860

BRACKET

1шт.

48

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

49

892-11010

LOCK WASHER,M10

2шт.

50

166052A1

BOLT

M10X25

2шт.

51

159198A1

ADAPTER

Incl. 51

1шт.

52

154503A1

O-RING

1шт.

53

157936A1

ELBOW

Incl. 54

1шт.

54

154503A1

O-RING

1шт.

55

KAJ11020

HYDRAULIC HOSE,340.00 mm

1шт.

81

KHJ2071

HOSE

6x2450

1шт.

82

KHJ2074

HOSE

6x2600

1шт.

84

KHJ1178

ELBOW

1шт.

102

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 103

2шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

104

KHJ2180

HOSE,6.3mm ID x 500mm L

6x500

1шт.

105

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 106

1шт.

106

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

107

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

KHJ2239

HOSE,520.00 mm

6x520

1шт.

112

150496A1

MOUNTING CLIP

12шт.

113

150498A1

MOUNTING CLIP

3шт.
