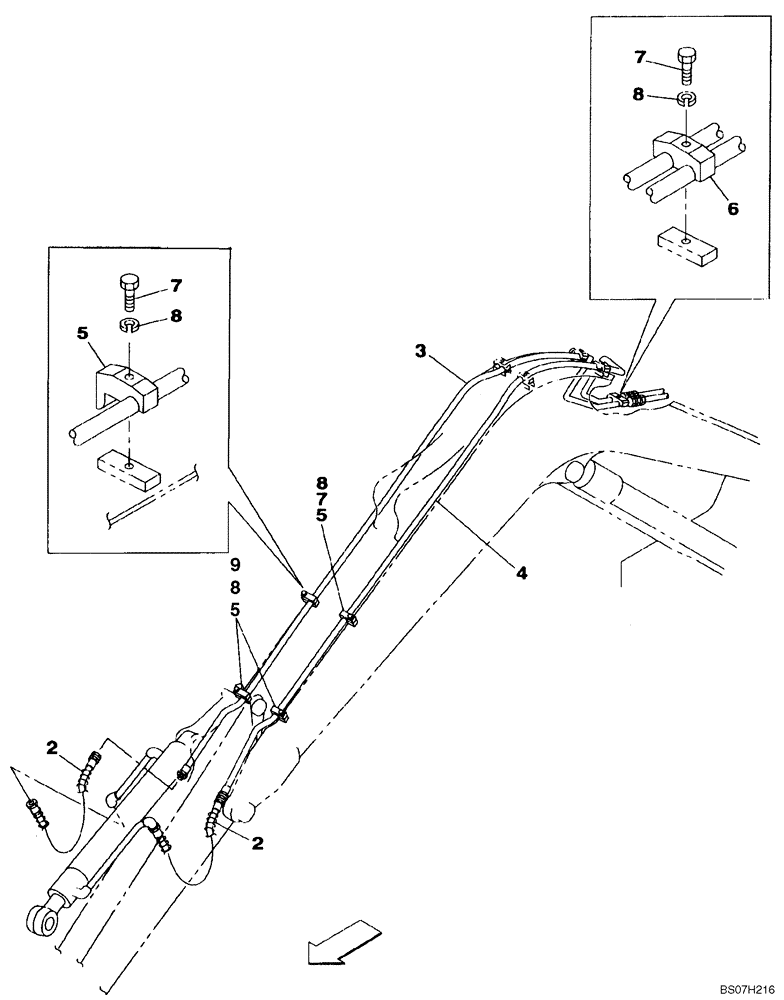

Запчасти Case CX75SR (08-59) - HYDRAULICS - BUCKET, 1,7 METER (5 FT 7 IN) STANDARD ARM (08) - HYDRAULICS

1

KAV2440

BUCKET CYLINDER

Bucket; See Figure 08-60

1шт.

2

166438A1

HYDRAULIC HOSE,12.70 mm ID x 900.00 mm

2шт.

3

KAV2152

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

4

KAV2153

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

5

166401A1

HALF-FLANGE

4шт.

6

KMJ0835

PIPE CLAMP

1шт.

7

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

3шт.

8

150811A1

WASHER

5шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.
