(08-58) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD, MODELS WITH STANDARD BOOM

Запчасти Case CX75SR (08-58) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD, MODELS WITH STANDARD BOOM (08) - HYDRAULICS

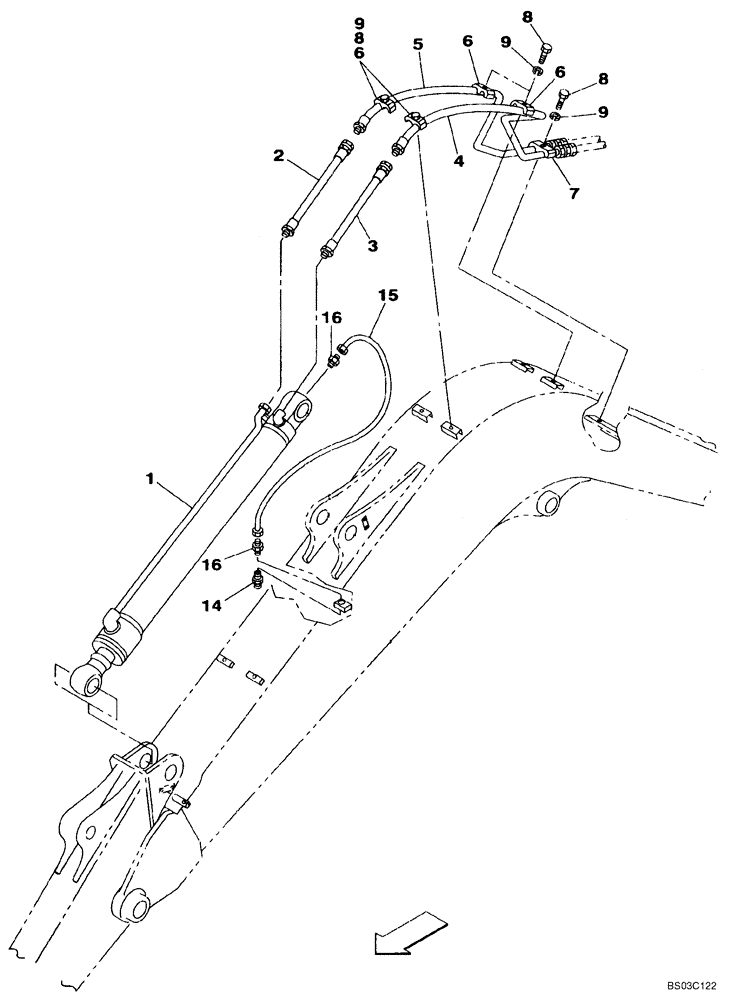

Схема запчастей Case CX75SR - (08-58) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD, MODELS WITH STANDARD BOOM (08) - HYDRAULICS
8
9
6
7
14
6
16
6
3
9
4
15
9
2
1
5
16
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2436

HYDRAULIC CYLINDER

Arm; See Figure 08-86

1шт.

2

166418A1

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

1шт.

3

166444A1

HYDRAULIC HOSE,15.90 mm ID x 600.00 mm

1шт.

4

KAV2150

HYD TUBE

1шт.

5

KAV2151

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

6

166400A1

COLLAR

4шт.

7

KAV0486

PIPE CLAMP

1шт.

8

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

5шт.

9

150811A1

WASHER

5шт.

14

153630A1

LUBE NIPPLE

1шт.

15

KHV0300

HOSE ASSY.

1шт.

16

150190A1

FITTING

2шт.
