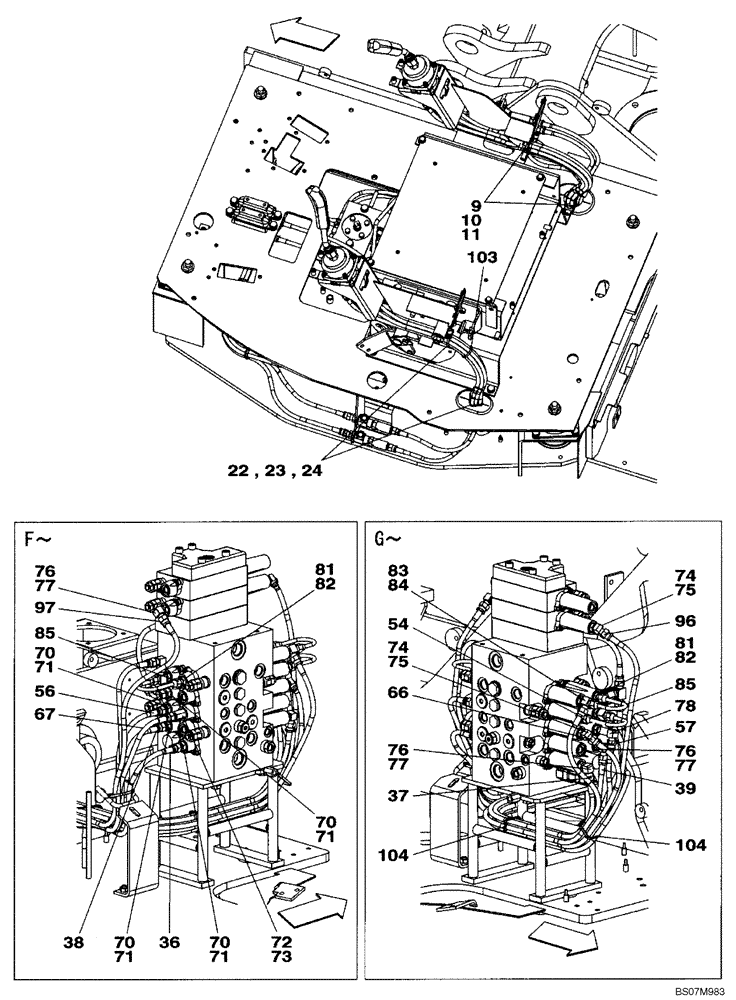

Запчасти Case CX75SR (08-54[03]) - PILOT CONTROL LINES, CONTROL VALVE - OPTIONAL (2-WAY) - WITH DOZER BLADE (08) - HYDRAULICS

9

150860A1

COLLAR

2шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

11

150496A1

MOUNTING CLIP

2шт.

22

150860A1

COLLAR

2шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

24

150496A1

MOUNTING CLIP

2шт.

36

KHJ2255

HOSE

6X2100

1шт.

37

KHJ2069

HOSE

6X2300

1шт.

38

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

39

KHJ2069

HOSE

6X2300

1шт.

54

KHJ2067

HOSE

6X2200

1шт.

56

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

57

KHJ2068

HOSE

6X2250

1шт.

66

KHJ2172

HOSE

6X2950

1шт.

67

KHJ2075

HOSE

6X2650

1шт.

70

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 71

4шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

162554A1

FITTING

Incl. 73

1шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

150933A1

ELBOW

Incl. 75

2шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 77

3шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

KHJ1178

ELBOW

1шт.

81

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 82

3шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

KHJ2131

TEE

Incl. 84

3шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

KAJ4701

HYD TUBE,6 mm ID x 8 mm OD

3шт.

96

KHJ2075

HOSE

6X2650

1шт.

97

KHJ2069

HOSE

6X2300

1шт.

103

150496A1

MOUNTING CLIP

2шт.

104

150498A1

MOUNTING CLIP

9шт.
