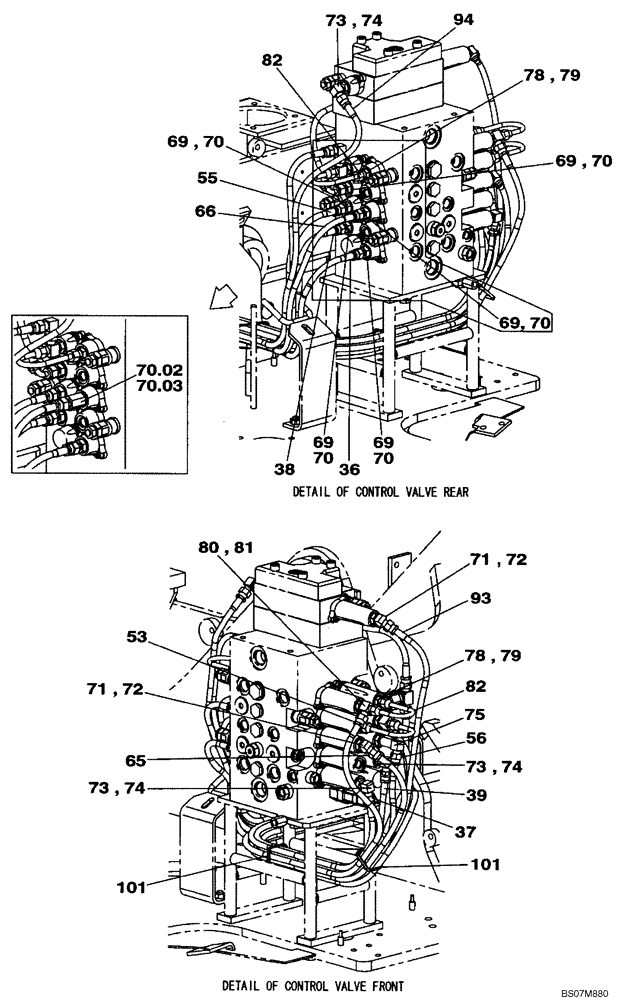

Запчасти Case CX75SR (08-50[04]) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH DOZER BLADE (08) - HYDRAULICS

37

KHJ2069

HOSE

6x2300

1шт.

39

KHJ2069

HOSE

6x2300

1шт.

53

KHJ2067

HOSE

6x2200

1шт.

55

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

56

KHJ2068

HOSE

6x2250

1шт.

65

KHJ2172

HOSE

6x2950

1шт.

66

KHJ2075

HOSE

6x2650

1шт.

69

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 70

4шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

70.02

162554A1

FITTING

Incl. 70.03

1шт.

70.03

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

71

150933A1

ELBOW

Incl. 71

2шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 74

3шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

KHJ1178

ELBOW

1шт.

78

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 79

1шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

KHJ2131

TEE

Incl. 81

3шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

KAJ4701

HYD TUBE,6 mm ID x 8 mm OD

3шт.

93

KHJ2075

HOSE

6x2650

1шт.

94

KHJ2069

HOSE

6x2300

1шт.

101

150498A1

MOUNTING CLIP

9шт.
