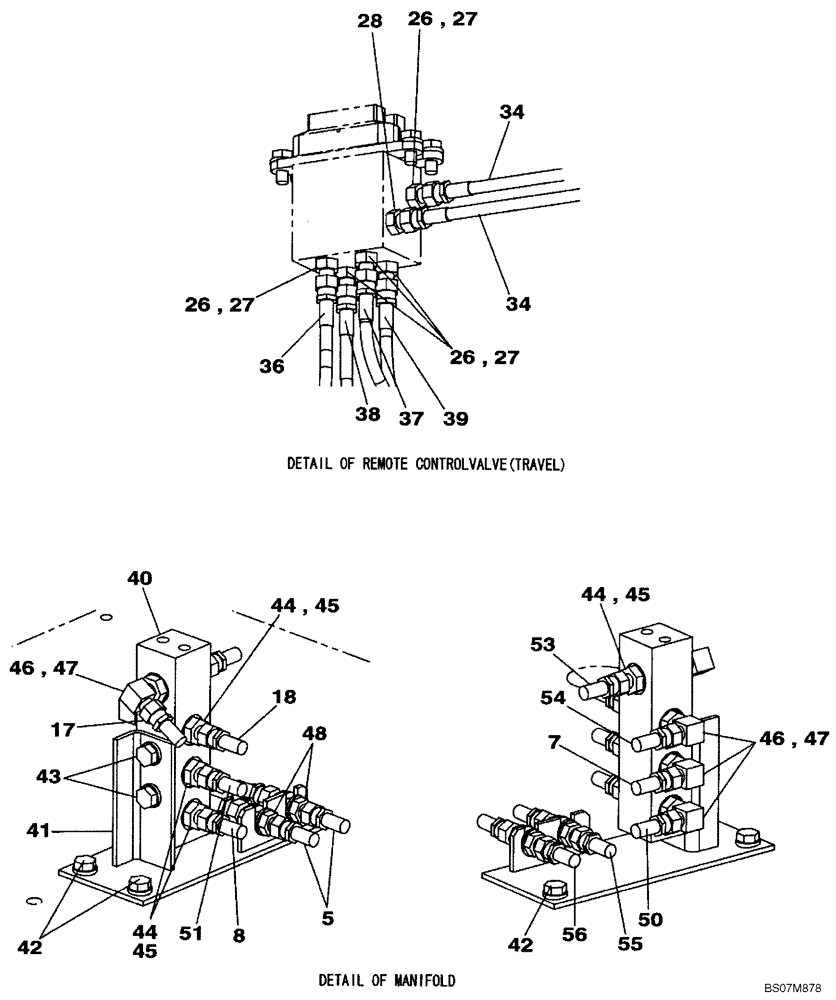

Запчасти Case CX75SR (08-50[02]) - PILOT CONTROL LINES - MODELS WITH DOZER BLADE (08) - HYDRAULICS

5

KHJ2058

HOSE

6X1550

2шт.

7

KHJ2059

HOSE

6X1650

1шт.

8

KHJ2059

HOSE

6X1650

1шт.

18

KHJ2062

HOSE

6X1800

1шт.

26

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 27

5шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

161841A1

HYD CONNECTOR

1шт.

34

KHJ2088

HOSE

6X850

2шт.

36

KHJ2255

HOSE

6X2100

1шт.

37

KHJ2069

HOSE

6X2300

1шт.

38

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

39

KHJ2069

HOSE

6X2300

1шт.

40

KHJ2437

MANIFOLD

1шт.

41

KAJ5013

BRACKET

1шт.

42

166052A1

BOLT

M10X25

3шт.

43

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

44

153378A1

ADAPTER

Incl. 45

4шт.

45

154475A1

O-RING

1шт.

46

156554A1

ELBOW

Incl. 47

4шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

159481A1

ADAPTER

2шт.

50

KHJ2057

HOSE

X1450

1шт.

51

KHJ2051

HOSE

6X1050

1шт.

53

KHJ2067

HOSE

6X2200

1шт.

54

KHJ2143

HOSE

6X1950

1шт.

55

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

56

KHJ2068

HOSE

6X2250

1шт.
