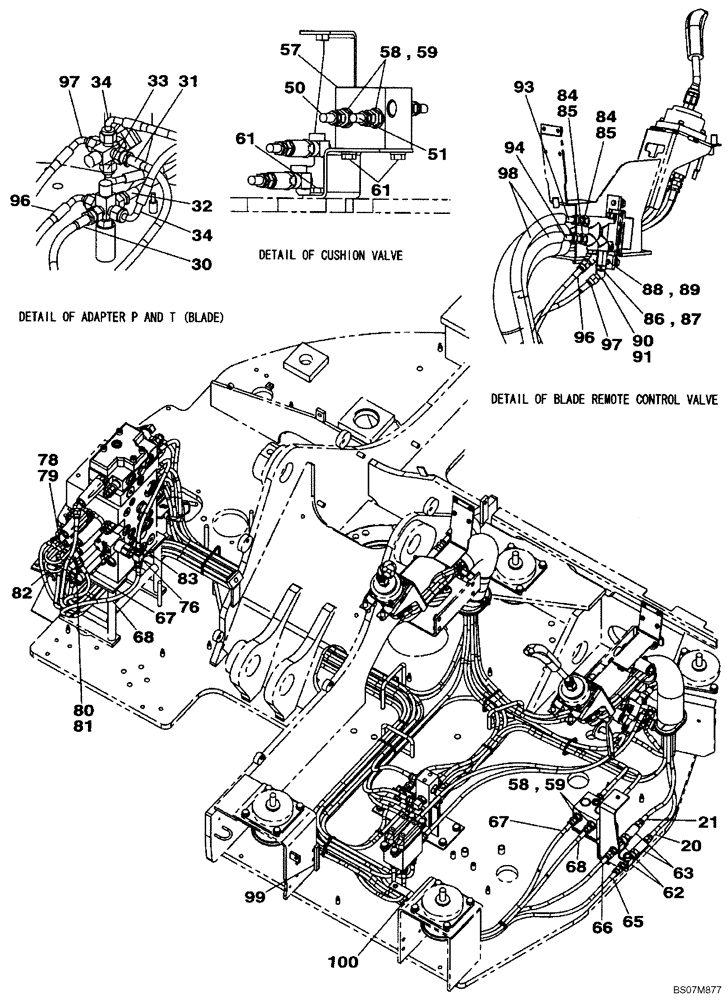

Запчасти Case CX75SR (08-50[01]) - PILOT CONTROL LINES, TRAVEL - MODELS WITH DOZER BLADE (08) - HYDRAULICS

20

KHJ2053

HOSE

6X1150

1шт.

21

KHJ2053

HOSE

6X1150

1шт.

30

KHJ2057

HOSE

6X1450

1шт.

31

KHJ2059

HOSE

6X1650

1шт.

32

KHJ2051

HOSE

6X1050

1шт.

33

KHJ2090

HOSE

6X1000

1шт.

34

KHJ2088

HOSE

6X850

2шт.

50

KHJ2057

HOSE

6X1450

1шт.

51

KHJ2051

HOSE

6X1050

1шт.

57

KHJ2317

VALVE, CUSHION

See Figure 08 - 44

1шт.

58

153378A1

ADAPTER

Incl. 59

4шт.

59

154475A1

O-RING

1шт.

61

166052A1

BOLT

M10X25

4шт.

62

KHJ12520

TEE

2шт.

63

KHJ2314

VALVE, CUSHION

See Figure 08 - 45

2шт.

65

KHJ2172

HOSE

6X2950

1шт.

66

KHJ2075

HOSE

6X2650

1шт.

67

KHJ2079

HOSE

6X3000

1шт.

68

KHJ2174

HOSE

6X3100

1шт.

76

167321A1

TEE

1шт.

78

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 79

1шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

KHJ2131

TEE

Incl. 81

3шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

KAJ4701

HYD TUBE,6 mm ID x 8 mm OD

3шт.

83

KHJ2180

HOSE,6.3mm ID x 500mm L

6X500

1шт.

84

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 85

2шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

KHJ0994

ADAPTER

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

162525A1

STUD

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

150933A1

ELBOW

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

KHJ2075

HOSE

6X2650

1шт.

94

KHJ2069

HOSE

6X2300

1шт.

96

KHJ2090

HOSE

6X1000

1шт.

97

KHJ2146

HOSE

6X1200

1шт.

98

KHR4065

PLASTIC-RUBBER TUBE

2шт.

99

KAJ4091

RUBBER SEAL

1шт.

100

150496A1

MOUNTING CLIP

2шт.
