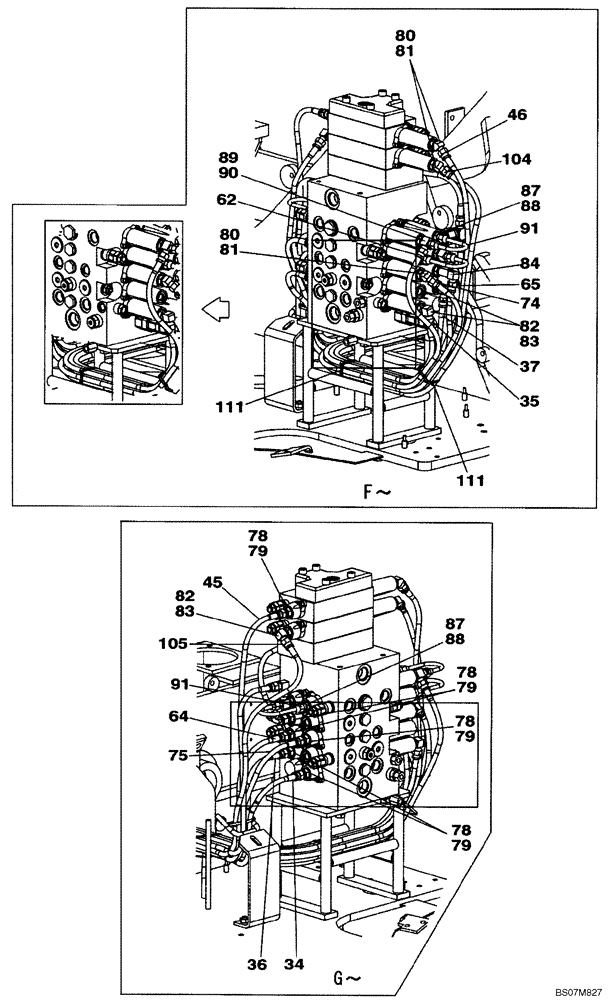

Запчасти Case CX75SR (08-42) - PILOT CONTROL LINES - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

34

KHJ2255

HOSE

6x2100

1шт.

35

KHJ2069

HOSE

6x2300

1шт.

36

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

37

KHJ2069

HOSE

6x2300

1шт.

45

KHJ2162

HOSE

6x2700

1шт.

46

KHJ2079

HOSE

6x3000

1шт.

62

KHJ2067

HOSE

6x220

1шт.

64

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

65

KHJ2068

HOSE

6x2250

1шт.

74

KHJ2172

HOSE

6x2950

1шт.

75

KHJ2075

HOSE

6x2650

1шт.

78

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 79

6шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

150933A1

ELBOW

Incl. 81

3шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 83

3шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

KHJ1178

ELBOW

1шт.

87

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 88

3шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHJ2131

TEE

Incl. 90

3шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

KAJ4701

HYD TUBE,6 mm ID x 8 mm OD

3шт.

104

KHJ2075

HOSE

6x2650

1шт.

105

KHJ2069

HOSE

6x2300

1шт.

111

150498A1

MOUNTING CLIP

9шт.
