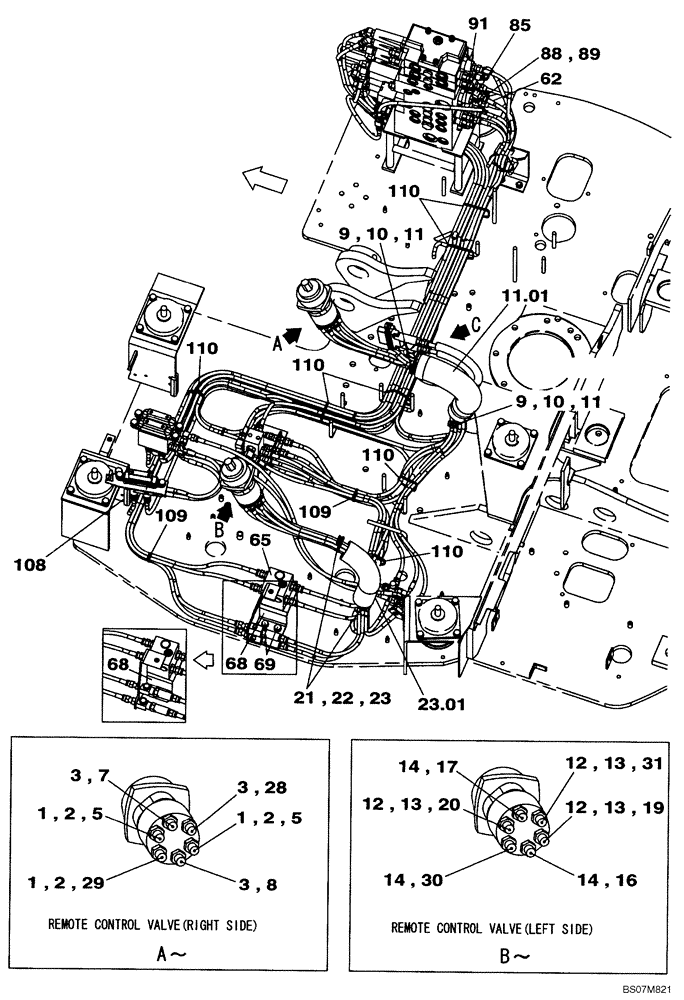

Запчасти Case CX75SR (08-36) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 2

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

161841A1

HYD CONNECTOR

3шт.

5

KHJ2058

HOSE

6X1550

2шт.

7

KHJ2059

HOSE

6X1650

1шт.

8

KHJ2059

HOSE

6X1650

1шт.

9

150860A1

COLLAR

2шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

11

150496A1

MOUNTING CLIP

2шт.

11.01

KHJ2578

PROTECTOR

1шт.

12

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 13

3шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

161841A1

HYD CONNECTOR

3шт.

16

KHJ2062

HOSE

6X1800

1шт.

17

KHJ2062

HOSE

6X1800

1шт.

19

KHJ2053

HOSE

6X1150

1шт.

20

KHJ2053

HOSE

6X1150

1шт.

21

150860A1

COLLAR

2шт.

22

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

23

150496A1

MOUNTING CLIP

2шт.

23.01

KHJ2578

PROTECTOR

1шт.

31

KHJ2090

HOSE

6X1000

1шт.

62

KHJ2143

HOSE

6X1950

1шт.

65

KHJ2317

VALVE, CUSHION

See Figure 08-44

1шт.

68

KAJ10270

BRACKET

1шт.

69

166052A1

BOLT

M10X25

4шт.

85

163814A1

ELBOW

1шт.

88

KHJ2131

TEE

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

108

KAJ4091

RUBBER SEAL

1-2шт.

109

150496A1

MOUNTING CLIP

2шт.

110

150498A1

MOUNTING CLIP

9шт.
