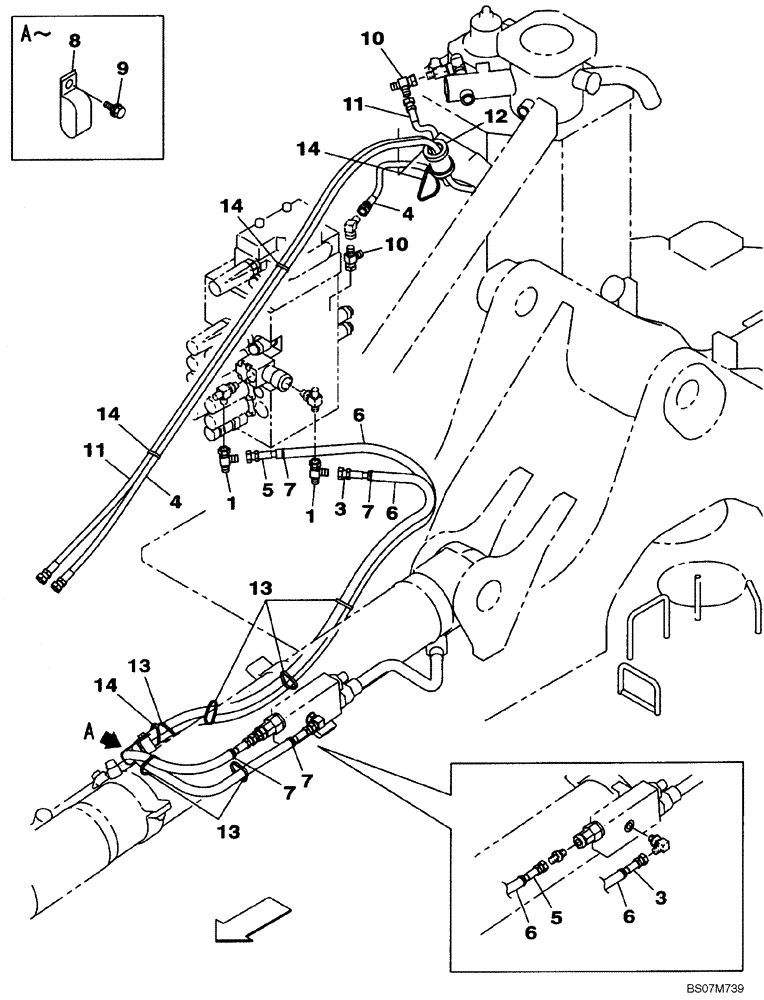

Запчасти Case CX75SR (08-35) - PILOT CONTROL LINES - MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KHJ2130

TEE

2шт.

3

167884A1

HYDRAULIC HOSE,6.30 mm ID x 1950.00 mm

1шт.

4

167884A1

HYDRAULIC HOSE,6.30 mm ID x 1950.00 mm

1шт.

5

KAJ4754

HYDRAULIC HOSE,6.35 mm ID x 1950.00 mm

1шт.

6

KBR0837

PLASTIC-RUBBER TUBE

2шт.

7

KAP0883

BAND

4шт.

8

KMJ1851

HOSE CLAMP

1шт.

9

166345A1

BOLT

M8X16

1шт.

10

KHJ2130

TEE

2шт.

11

167888A1

HYDRAULIC HOSE,6.30 mm ID x 1850.00 mm

1шт.

12

KHJ2023

HOSE CLAMP

1шт.

13

150496A1

MOUNTING CLIP

6шт.

14

150498A1

MOUNTING CLIP

4шт.
