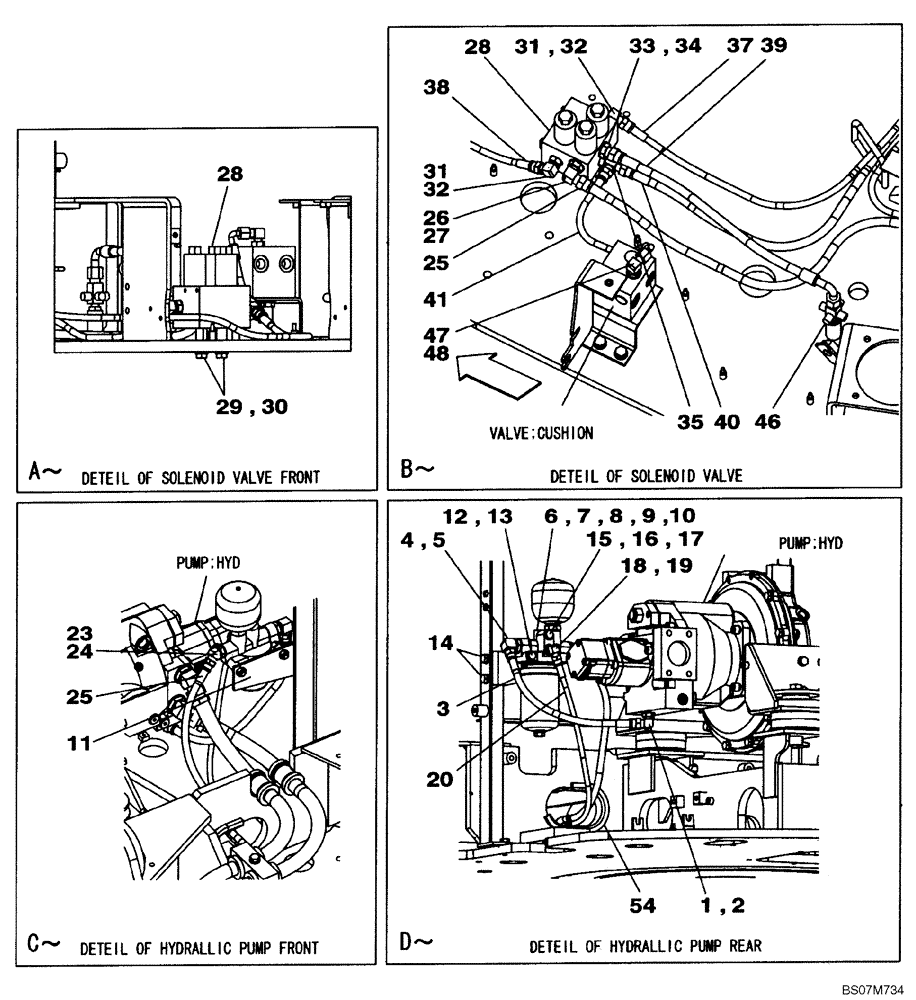

Запчасти Case CX75SR (08-33) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 2

1шт.

2

154475A1

O-RING

1шт.

3

KHJ2144

HOSE

9X390

1шт.

4

157935A1

ELBOW

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KHJ17710

FILTER ASSY

1шт.

7

KHJ17720

FILTER HEAD

1шт.

8

KHJ17730

HYDRAULIC OIL FILTER

1шт.

9

KHJ2359

ACCUMULATOR

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

KAJ10820

BRACKET

1шт.

12

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

13

150409A1

WASHER

2шт.

14

166052A1

BOLT

M10X25

2шт.

15

KHJ2620

BUSHING

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

1541849C1

COUPLING

1шт.

18

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

KHJ2077

HOSE

6X2800

1шт.

23

157584A1

ELBOW

Incl. 24

1шт.

24

154475A1

O-RING

1шт.

25

KHJ2318

HOSE

9X1400

1шт.

26

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 27

1шт.

27

154475A1

O-RING

1шт.

28

KHJ15440

SOLENOID VALVE

See Figure 08 - 29

1шт.

29

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

30

150409A1

WASHER

M10

2шт.

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

2шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 34

1шт.

34

154475A1

O-RING

1шт.

35

163422A1

TEE

1шт.

37

KHJ2049

HOSE

6X900

1шт.

38

KHJ2066

HOSE

6X2150

1шт.

39

KHJ2105

HOSE

9X500

1шт.

40

KHJ2135

HOSE

9X2500

1шт.

41

KHJ2084

HOSE

6X350

1шт.

46

KHJ1966

ADAPTER

1шт.

47

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 48

1шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

54

164686A1

GROMMET

1шт.
