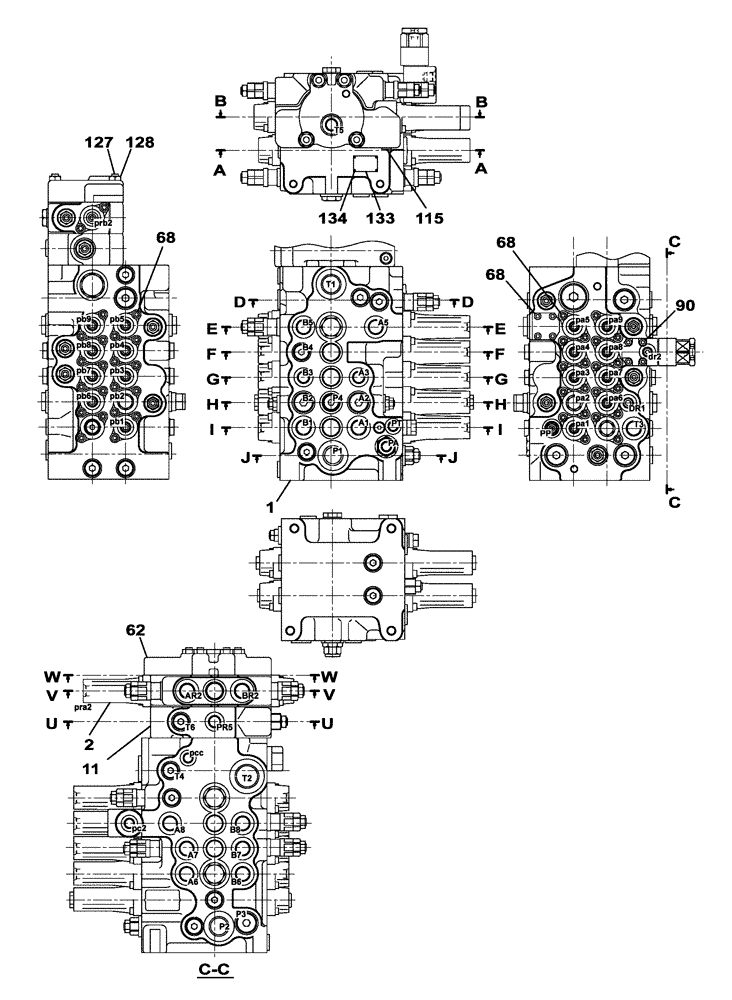

Запчасти Case CX75SR (08-24[02]) - CONTROL VALVE (08) - HYDRAULICS

1

KAJ4761

CONTROL VALVE

1шт.

See Figure(s) 08-201-02 01 - 08-201-06 01

1шт.

2

LJ00929

HYD VALVE SECTION

2шт.

Include(s) Réf. 9 See Figure(s) 08-201-05-01 , Also Include(s) Réf. 3 See Figure(s) 3 08-201-06-01

1шт.

11

LJ00930

HYD VALVE SECTION

1шт.

Include(s) Réf. 22 See Figure(s) 08-201-05-01 , Also Include(s) Réf. 12 See Figure(s) 08-201-06-01

1шт.

62

LT00119

HOUSING

1шт.

68

LUC0118

BOLT,Hex Skt Hd

44шт.

90

108R006Z050R

BOLT

4шт.

115

163368A1

PLUG

1шт.

See Figure(s) 08-201-04 01

1шт.

127

LB00765

TIE-ROD

4шт.

128

TUC0008

SPECIAL NUT

4шт.

133

NSS

NOT SOLD SEPARAT

1шт.

134

NSS

NOT SOLD SEPARAT

4шт.
