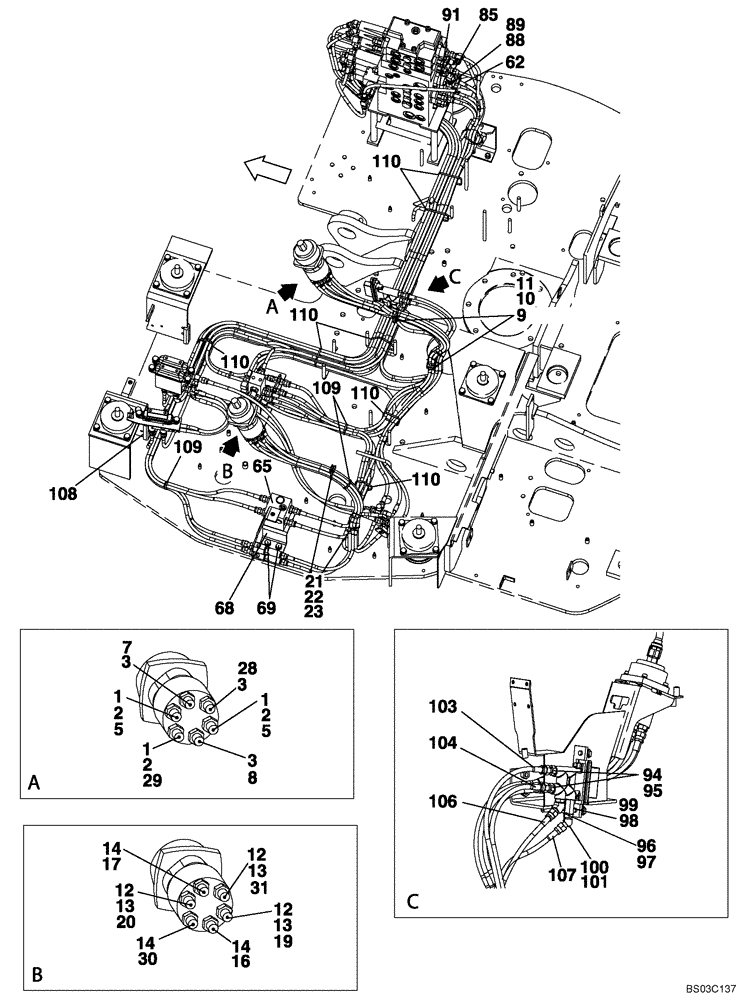

Запчасти Case CX75SR (08-30) - PILOT CONTROL LINES - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 2
3шт.
2
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
3
161841A1
HYD CONNECTOR
3шт.
5
KHJ2058
HOSE
See Figure 08-34
1шт.
7
KHJ2059
HOSE
See Figure 08-34
1шт.
8
KHJ2059
HOSE
See Figure 08-34
1шт.
9
150860A1
COLLAR
2шт.
10
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
2шт.
11
150496A1
MOUNTING CLIP
2шт.
12
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 13
3шт.
13
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
14
161841A1
HYD CONNECTOR
3шт.
16
KHJ2062
HOSE
See Figure 08-34
1шт.
17
KHJ2062
HOSE
See Figure 08-34
1шт.
19
KHJ2053
HOSE
See Figure 08-34
1шт.
20
KHJ2053
HOSE
See Figure 08-34
1шт.
21
150860A1
COLLAR
2шт.
22
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
2шт.
23
150496A1
MOUNTING CLIP
2шт.
28
KHJ2311
HOSE
See Figure 08-34
1шт.
29
KHJ2011
HOSE
See Figure 08-34
1шт.
30
KHJ2051
HOSE
See Figure 08-34
1шт.
31
KHJ2090
HOSE
See Figure 08-34
1шт.
62
KHJ2143
HOSE
See Figure 08-34
1шт.
65
KHJ2317
VALVE, CUSHION
See Figure 08-80
1шт.
68
KAJ4685
BRACKET
1шт.
69
166052A1
BOLT
2шт.
85
163814A1
ELBOW
1шт.
88
KHJ2131
TEE
Incl. 89
1шт.
89
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
91
KHJ2180
HOSE,6.3mm ID x 500mm L
1шт.
94
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 95
2шт.
95
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
96
KHJ0994
ADAPTER
Incl. 97
1шт.
97
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
98
162525A1
STUD
Incl. 99
1шт.
99
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
100
150933A1
ELBOW
Incl. 101
1шт.
101
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
KHJ2075
HOSE
See Figure 08-32
1шт.
104
KHJ2069
HOSE
See Figure 08-32
1шт.
106
KHJ2090
HOSE
See Figure 08-34
1шт.
107
KHJ2146
HOSE
See Figure 08-34
1шт.
108
KAJ4091
RUBBER SEAL
1шт.
109
150496A1
MOUNTING CLIP
1шт.
110
150498A1
MOUNTING CLIP
1шт.
Выбрано товаров: 46
