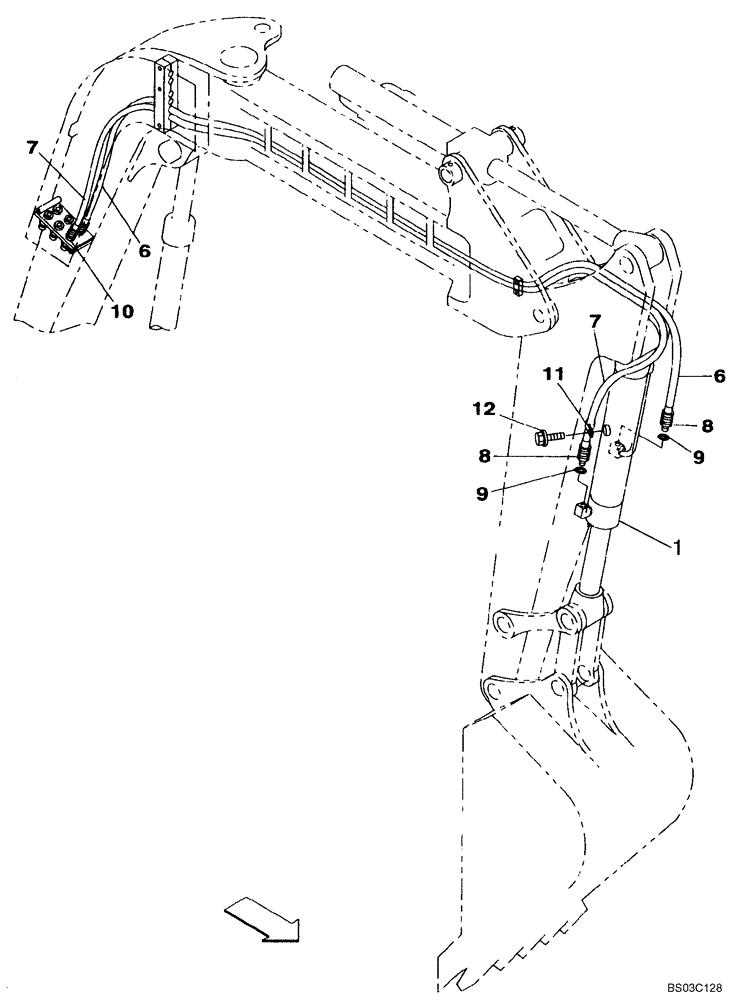

Запчасти Case CX75SR (08-26) - HYDRAULICS - BUCKET, 1,75 METER (5 FT 9 IN) OFFSET ARM (08) - HYDRAULICS

1

KAV2441

BUCKET CYLINDER

See Figure 08-91

1шт.

6

KAV2136

HYDRAULIC HOSE,12.70 mm ID x 4700.00 mm

1шт.

7

KAV2137

HYDRAULIC HOSE,12.70 mm ID x 5120.00 mm

1шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 9

2шт.

9

154487A1

O-RING

1шт.

10

KHJ0507

ADAPTER

2шт.

11

KHV0471

HOSE CLAMP

1шт.

12

166350A1

BOLT

1шт.
