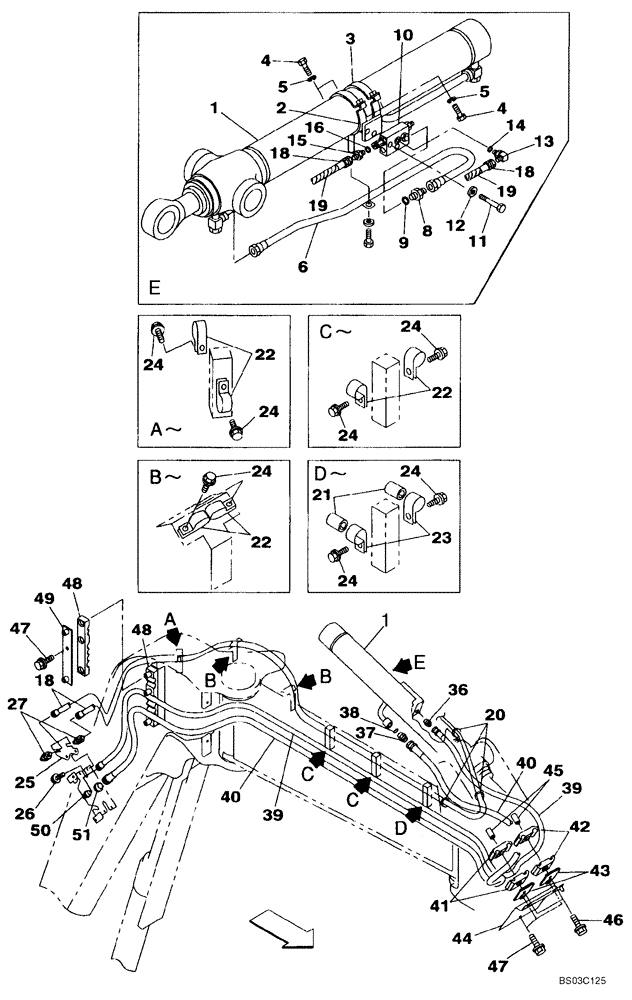

Запчасти Case CX75SR (08-23) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD, MODELS WITH OFFSET BOOM (08) - HYDRAULICS

1

KAV2439

HYDRAULIC CYLINDER

Arm; See Figure 08-89

1шт.

2

KAV2261

CLAMP

1шт.

3

168557A1

COLLAR

2шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

892-11010

LOCK WASHER,M10

4шт.

6

KAV2244

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 9

1шт.

9

154503A1

O-RING

1шт.

10

KAJ4596

SAFETY VALVE

See Figure 08-94

1шт.

11

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

KHJ1322

HYDRAULIC HOSE,6.35 mm ID x 4000.00 mm

2шт.

19

157692A1

PLASTIC-RUBBER TUBE

2шт.

20

150067A1

MOUNTING CLIP

1шт.

21

KAV2419

RUBBER PAD

2шт.

22

162147A1

CLIP

10шт.

23

162148A1

CLIP

2шт.

24

166345A1

BOLT

12шт.

25

KAV2487

BRACKET

1шт.

26

167182A1

BOLT,Sems, M8 x 25mm

2шт.

27

159481A1

ADAPTER

2шт.

36

168988A1

ADAPTER

1шт.

37

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 38

1шт.

38

154503A1

O-RING

1шт.

39

KAV2138

HYDRAULIC HOSE,15.90 mm ID x 4700.00 mm

1шт.

40

KAV2139

HYDRAULIC HOSE,12.70 mm ID x 4600.00 mm

1шт.

41

KAV2376

HOSE CLAMP

2шт.

42

KAV2379

HOSE CLAMP

2шт.

43

KAV2416

BRACKET

2шт.

44

KAV2417

PLATE

1шт.

45

KAV2149

BOSS

2шт.

46

162278A1

BOLT

2шт.

47

167893A1

BOLT

4шт.

48

KAV2132

HOSE CLAMP

2шт.

49

KAV2134

BRACKET

1шт.

50

KHJ0507

ADAPTER

1шт.

51

KHJ0508

FITTING

1шт.
