(08-22) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD, MODELS WITH OFFSET BOOM

Запчасти Case CX75SR (08-22) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD, MODELS WITH OFFSET BOOM (08) - HYDRAULICS

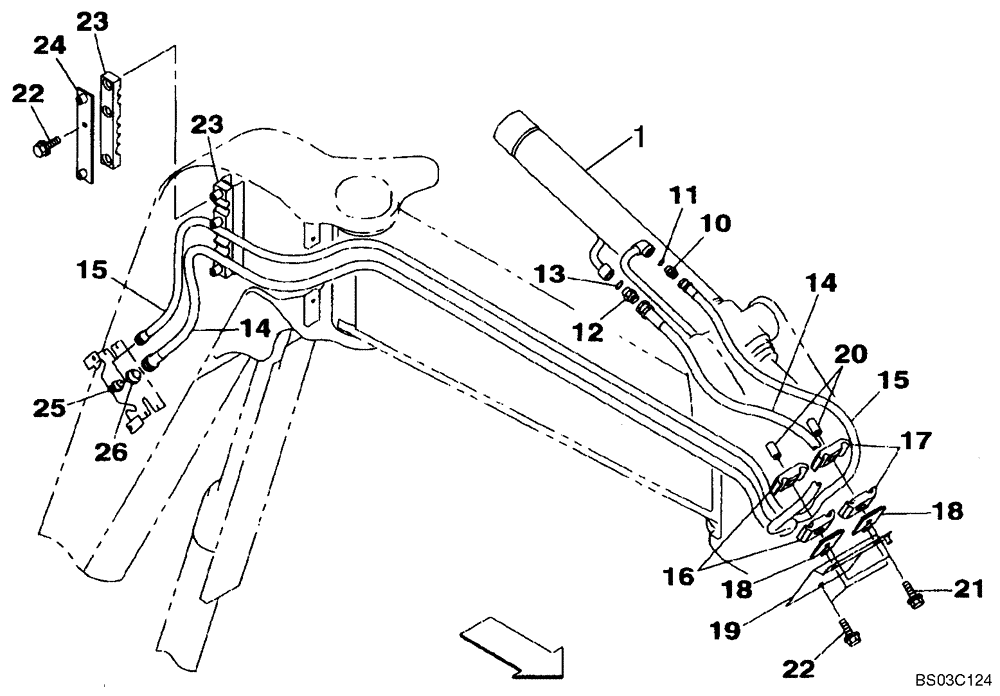

Схема запчастей Case CX75SR - (08-22) - HYDRAULICS - ARM CYLINDER, MODELS WITHOUT LOAD HOLD, MODELS WITH OFFSET BOOM (08) - HYDRAULICS
17
13
15
26
21
15
22
12
1
25
19
18
20
24
23
14
11
23
18
14
22
10
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2438

HYDRAULIC CYLINDER

Arm; See Figure 08-88

1шт.

10

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 11

1шт.

11

154487A1

O-RING

1шт.

12

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 13

1шт.

13

154503A1

O-RING

1шт.

14

KAV2138

HYDRAULIC HOSE,15.90 mm ID x 4700.00 mm

1шт.

15

KAV2139

HYDRAULIC HOSE,12.70 mm ID x 4600.00 mm

1шт.

16

KAV2376

HOSE CLAMP

2шт.

17

KAV2379

HOSE CLAMP

2шт.

18

KAV2416

BRACKET

2шт.

19

KAV2417

PLATE

1шт.

20

KAV2149

BOSS

2шт.

21

162278A1

BOLT

2шт.

22

167893A1

BOLT

4шт.

23

KAV2132

HOSE CLAMP

2шт.

24

KAV2134

BRACKET

1шт.

25

KHJ0507

ADAPTER

1шт.

26

KHJ0508

FITTING

1шт.
