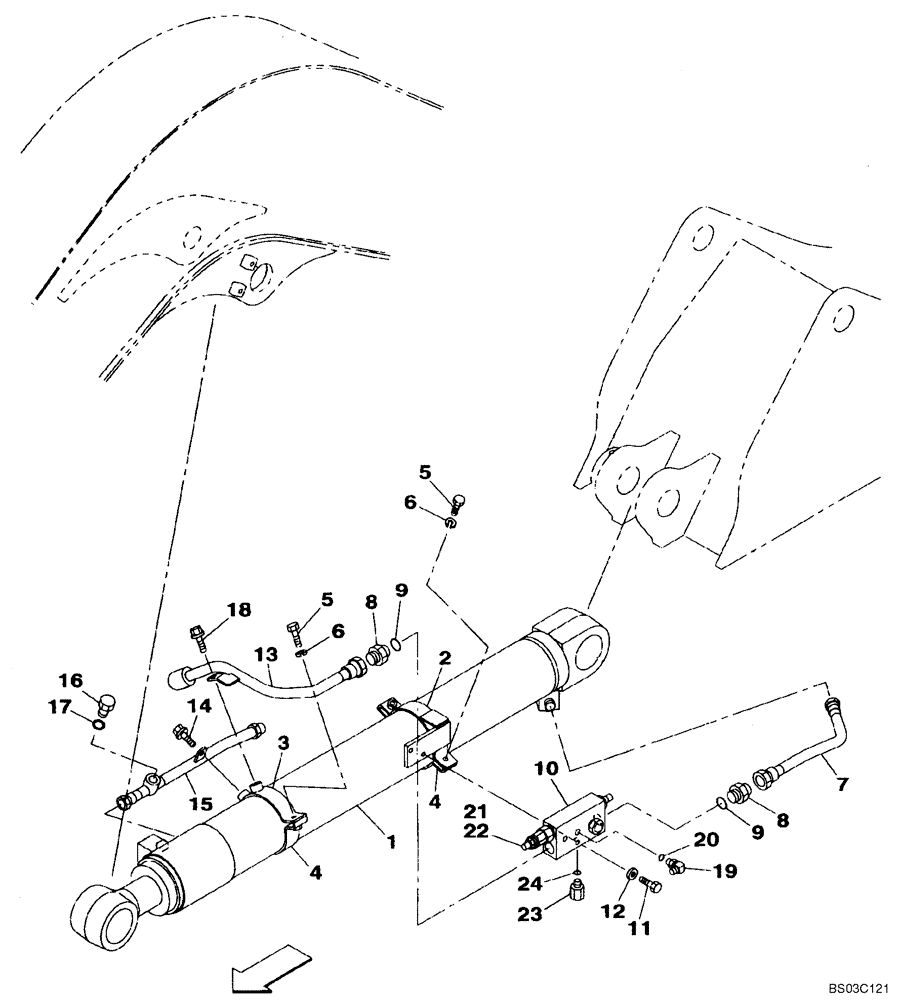

Запчасти Case CX75SR (08-17) - HYDRAULICS - STANDARD BOOM CYLINDER LINE, MODELS WITH LOAD HOLD (08) - HYDRAULICS

1

KAV2435

HYDRAULIC CYLINDER

Standard Boom; See Figure 08-84

1шт.

2

KAV2387

CLAMP BRACKET

1шт.

3

KAV2382

CLAMP BRACKET

1шт.

4

KAV1682

CLAMP BRACKET

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

KAV2240

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 9

2шт.

9

154503A1

O-RING

1шт.

10

KAJ4596

SAFETY VALVE

See Figure 08-94

1шт.

11

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

13

KAV2381

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

14

166351A1

BOLT,Sems, M10 x 20mm

1шт.

15

KAV2386

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

16

162557A1

PLUG

Incl. 17

1шт.

17

154475A1

O-RING

1шт.

18

166351A1

BOLT,Sems, M10 x 20mm

1шт.

19

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

KHJ1584

UNION

Incl. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
