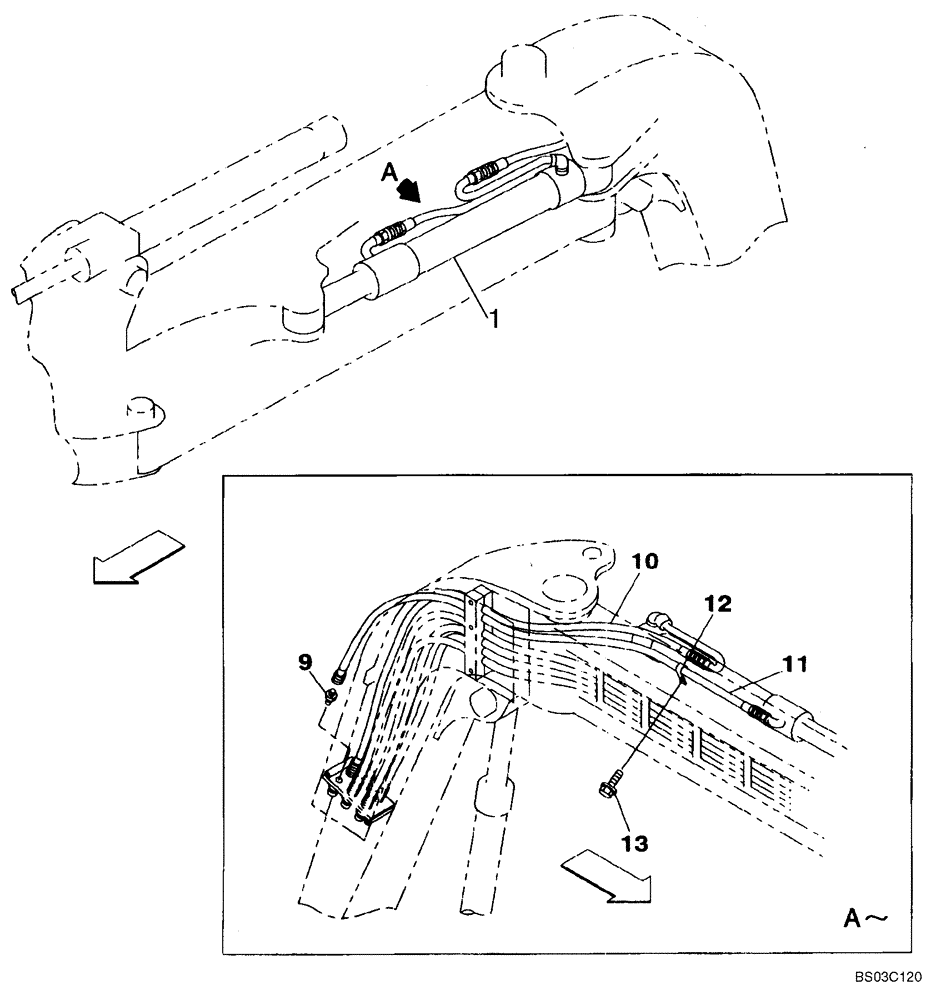

Запчасти Case CX75SR (08-16) - HYDRAULICS - OFFSET BOOM CYLINDER LINE (08) - HYDRAULICS

1

KAV2442

HYDRAULIC CYLINDER

Offset Boom; See Figure 08-85

1шт.

9

162826A1

ADAPTER

2шт.

10

KAV2140

HYDRAULIC HOSE,9.50 mm ID x 2000.00 mm

1шт.

11

KAV2141

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

1шт.

12

KHV0470

HOSE CLAMP

1шт.

13

166350A1

BOLT

1шт.
