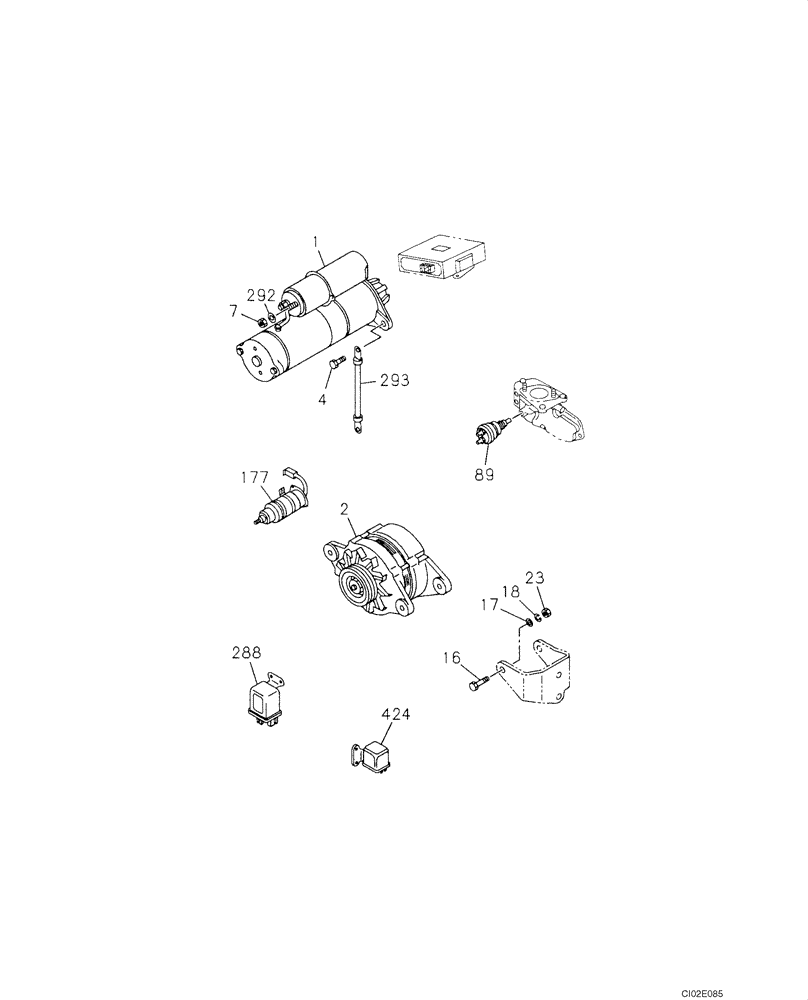

Запчасти Case CX75SR (04-12) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

1

86990202

STARTING MOTOR

Component Parts Not Serviced Separately

1шт.

2

86990071

ALTERNATOR

See Figure 04-13

1шт.

4

86990203

BOLT

M12 x 40

2шт.

7

289780A1

NUT

M8

1шт.

16

86990204

BOLT

Alternator Attach Bolt - M8 x 124

1шт.

17

289787A1

WASHER

M8

1шт.

18

289782A1

LOCK WASHER

1шт.

23

289775A1

NUT

1шт.

89

86990205

PRESSURE SWITCH

1шт.

177

86990206

SOLENOID

Fuel Shutoff

1шт.

288

86990208

RELAY

Safety

1шт.

292

289782A1

LOCK WASHER

1шт.

293

86990207

CABLE

300 mm (11-7/8 in)

1шт.

424

87702798

RELAY,12V

Starter - Replaces 86990209

1шт.
