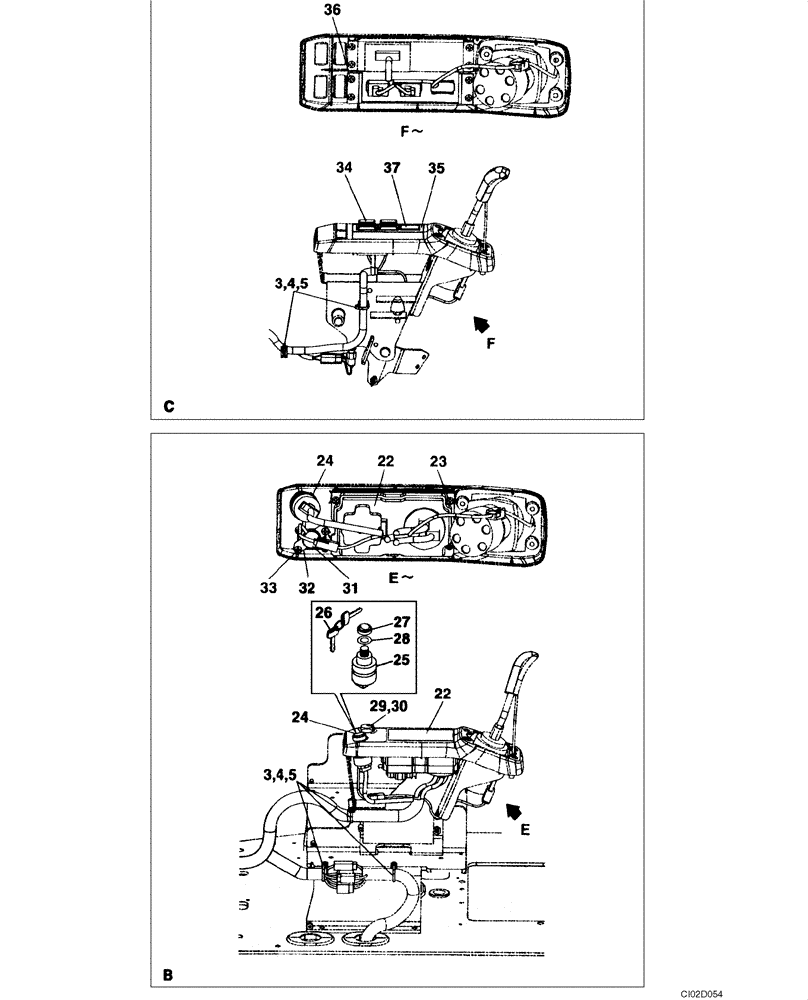

Запчасти Case CX75SR (04-04) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

3

150496A1

MOUNTING CLIP

1шт.

4

150860A1

COLLAR

5шт.

5

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

22

KHR3942

INSTRUMENT PANEL

1шт.

23

KHR3806

SELF-TAP SCREW

4шт.

24

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Replaces KHR3270

1шт.

25

KHR3078

IGNITION SWITCH

1шт.

26

KHR20070

IGNITION KEY

KEY CASE, Replaces 150979A1

2шт.

27

KHR3080

CAP

1шт.

28

KHR3081

WASHER

1шт.

29

KHR2750

KNOB

1шт.

30

KHR2741

PACKING

1шт.

31

KHR2751

SWITCH

THROTTLE VOLUME

1шт.

32

KHR3561

BRACKET

1шт.

33

KHR2737

SELF-TAP SCREW

2шт.

34

KHR3886

SWITCH

1шт.

35

KHR3906

COVER

1шт.

36

KHR2737

SELF-TAP SCREW

4шт.

37

KHR2913

CAP

1шт.

38

KMR0897

GROMMET

Not Illustrated

1шт.

39

KHR2501

SOCKET

1шт.

40

KHR4045

CIGAR LIGHTER

Not Illustrated

1шт.
