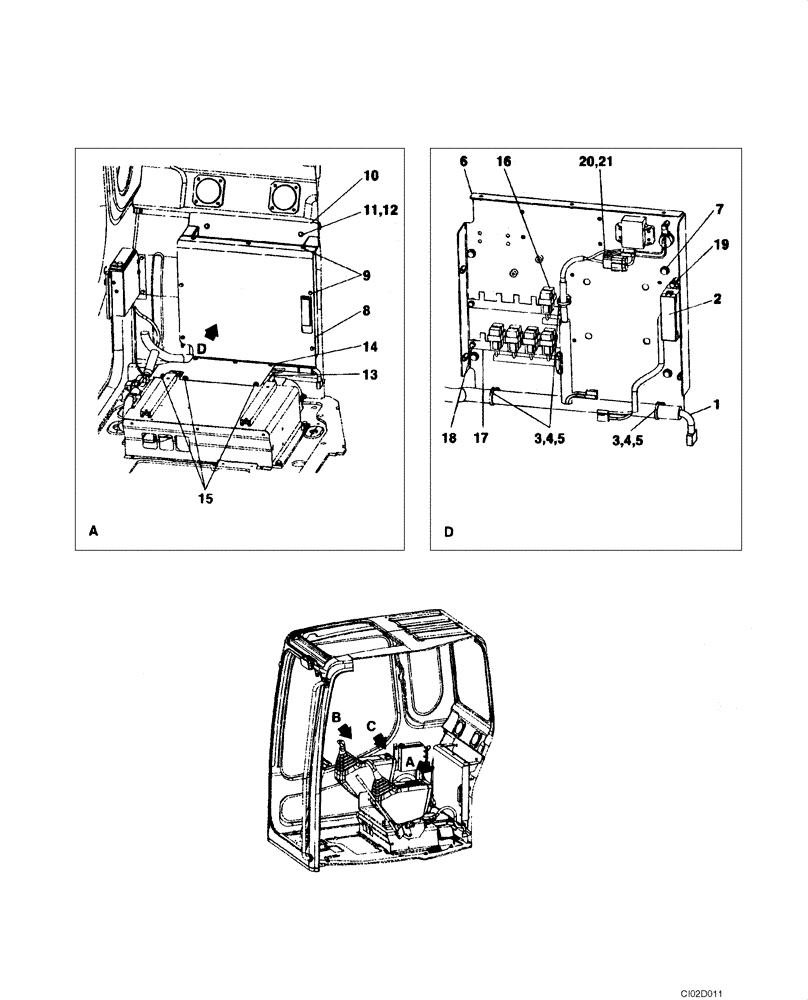

Запчасти Case CX75SR (04-03) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

1

KAR1452

WIRE HARNESS

Incl. 2

1шт.

2

KHR3922

FUSE BOX

1шт.

2a

231959A1

DIODE

Not Illustrated

1шт.

3

150496A1

MOUNTING CLIP

1шт.

4

150860A1

COLLAR

3шт.

5

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

6

KHR4015

BRACKET

1шт.

7

166345A1

BOLT

4шт.

8

KHR3903

COVER

1шт.

9

KHN2132

BOLT,Hex Flg Hd, M6 x 16

7шт.

10

KHR4043

COVER

Replaces KHR3904

1шт.

11

162571A1

BOLT,High Strength, M8 x 16mm

2шт.

12

159500A1

WASHER

2шт.

13

KHR3905

COVER

1шт.

14

KHN2132

BOLT,Hex Flg Hd, M6 x 16

6шт.

15

KHN0482

WASHER

3шт.

16

KHR3803

RELAY

6шт.

17

KHR3807

BRACKET

2шт.

18

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

4шт.

19

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

20

165405A1

CLIP

1шт.

21

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.
