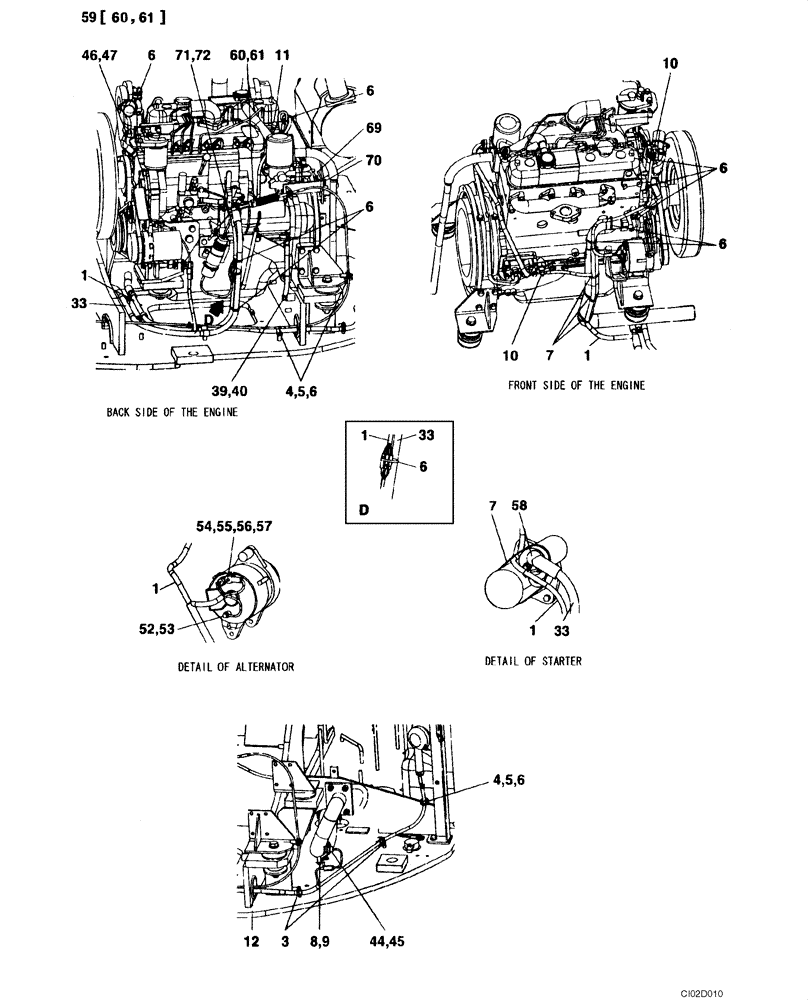

Запчасти Case CX75SR (04-02) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KAR1501

WIRE HARNESS

Replaces KAR1454

1шт.

3

KHR2787

CLAMP

2шт.

4

150860A1

COLLAR

3шт.

5

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

6

150496A1

MOUNTING CLIP

1шт.

7

150498A1

MOUNTING CLIP

1шт.

6

161100A1

MOUNTING CLIP

1шт.

8

165405A1

CLIP

1шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

10

159171A1

CAP

3шт.

11

159179A1

PROTECTION CAP

1шт.

12

KEJ0422

GROMMET

1шт.

33

KAR1474

ELECTRIC CABLE

See Figure 04-01

1шт.

39

KHJ2298

BOLT,Spcl

1шт.

40

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

44

163658A1

THERMOSTATIC SWITCH

Oil Temperature

1шт.

45

159901A1

SEALING WASHER

1шт.

46

167331A1

SENSOR

Water Temperature

1шт.

47

159171A1

CAP

1шт.

52

167280A1

BOLT,Spcl, M5 x 8mm

1шт.

53

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

54

159179A1

PROTECTION CAP

1шт.

55

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

56

183-106VR

SPRING WASHER

1шт.

57

162R006SR

NUT

M6

1шт.

58

162212A1

TERMINAL CONNECTOR

1шт.

59

KHR3957

ELECTRIC MOTOR

Incl. 60, 61

1шт.

60

KHR13880

ELECTRIC MOTOR

Replaces KHR3896

1шт.

61

KHR3956

THROTTLE CONTROL

Cable

1шт.

69

KAR1488

BRACKET

1шт.

70

167182A1

BOLT,Sems, M8 x 25mm

2шт.

71

162R005SR

NUT

1шт.

72

895-10005

WASHER,M5 x 10 x 1

1шт.
